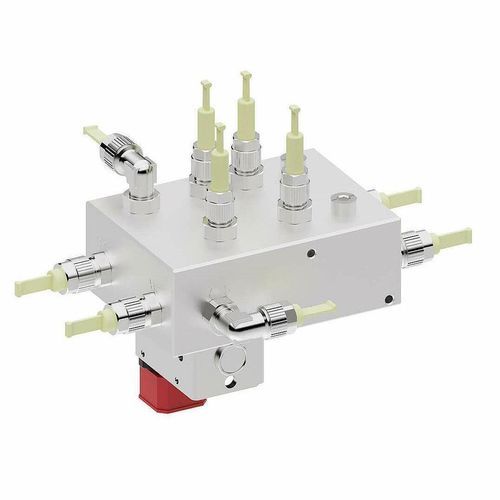

Multi-channel manifold

stainless steelfor gasmulti-port

Overview
A plug & play solution for fast, safe and precise process applications in fluidics and pneumatics. AVS Römer distribution manifolds set industry standards for the distribution of liquids or gases in fluid circuits. A single component handles the targeted supply, distribution and control of liquid and gas flows in technical equipment and machines. Integrated filter and valve functions enable a large variety of configurations in combination with the modular design.

Key attributes

• Compact
• Safe
• Very easy to integrate
• Customized

Application-specific highlights
The requirements for distribution manifolds vary depending on the application and the intended purpose. Different materials and designs cover a broad range of applications. As a specialist in custom solutions, core competencies include implementing customer-specific requirements for and related to the product:

• Special handling
• Extreme requirements
• Complex processes
• Special functions

Benefits

• Plug & Play: Distribution manifolds handle many functions as a single component, reducing installation work and eliminating the need for separate fittings.
• Perfect integration: Can integrate valves, sealing and diaphragm units, flow/pressure/temperature sensors and other functions so one component replaces multiple separate products.
• Compact design: Space-saving modular construction enables adaptation to tight installation spaces.
• Completely safe: Direct installation of push-in/push-on connectors reduces sealing points and leakage risk. Each manifold is individually tested for all requirements and functions (100% testing) to ensure maximum safety.
• Customized all-inclusive package: At customer request, services include project planning and full design according to customer specifications and installation space, manufacturability and economic viability checks, prototypes and sample production up to serial production, and additional customer specifications for handling, cleanliness, packaging, etc.

  • Project planning and CAD models
  • Examination of manufacturability and economic viability
  • Prototypes, sample and serial production
  • Additional specifications (handling, cleanliness, packaging)
• Various materials: From plastics and aluminum to stainless steel to meet different pressure/temperature requirements.
• Tailored to your requirements: Variations or customized distribution manifolds to guarantee the perfect solution for the application.

Typical applications

• Machine tools — water manifolds, coolant manifolds, DI water manifolds
• Print technology — ink manifolds, coolant manifolds
• Laser technology — clean air distributors, water and coolant manifolds, DI water manifolds
• Cooling and temperature control systems — coolant manifolds, DI water manifolds
• Charging station technology — water manifolds, coolant manifolds

Technical characteristics

• Function integration: supply, distribution, control of liquid and gas flows; integrated filters and valves; possibility to integrate sensors (flow, pressure, temperature)
• Design: modular, compact, space-optimised
• Connections: push-in / push-on connectors to reduce sealing points
• Materials: plastics, aluminium, stainless steel (selection based on pressure/temperature requirements)
• Quality: individual testing of each manifold (100% test coverage)
• Customization: project planning, CAD, prototypes, sample and serial production tailored to customer requirements
• Suitable for a wide range of industrial applications where precise fluid or gas distribution is required
