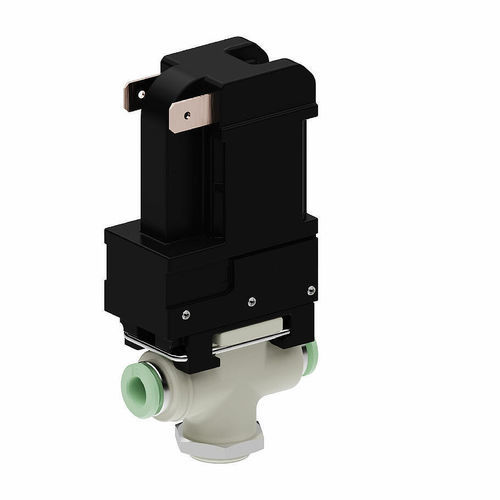

2/2-way solenoid valve MAGMA

for foodcompactfor aggressive media

Short description
The medium-separated lever solenoid valve ELV (MAGMA) controls high flow rates in a compact, hygienic design through high power density, enabling fast installation and reduced maintenance intervals.

Highlights

• Hygienic design: dead-space optimized for short rinsing times and fewer cleaning cycles
• Compact construction with high power density for controlling high flow rates
• Wear-free components and corrosion-resistant materials for long service life

Installation and maintenance

• Tool-free assembly via AVS Römer push-in connectors (4 mm and 6 mm)
• Fixing clip connects solenoid actuator and valve body for quick assembly
• Quick replacement of the separation membrane for short service times and long maintenance intervals

Design and materials

• Medium-separated design providing thermal decoupling between fluid and actuator
• Corrosion-resistant construction and selected high-quality materials
• Wear-free design minimizes downtime

Applications

• Food & Beverage
• Industrial process applications
• Life Science and laboratory technology

Additional product information
Standard configurations cover pressures up to 16 bar and nominal sizes up to 4 mm. The valve is designed for simple, fast and safe installation with compact dimensions and integrated AVS Römer push-in connections. Customized solutions available on request.

Characteristics / technical specifications

• Product type: Medium-separated lever solenoid valve (ELV)
• Commercial designation: MAGMA type ELV
• Design: medium-separated, thermal decoupling
• Materials: corrosion-resistant, selected high-quality materials
• Connections: integrated AVS Römer push-in connectors (4 mm and 6 mm)
• Assembly: tool-free push-in technology; fixing clip for actuator-valve body connection
• Maintenance: wear-free construction; quick membrane replacement
• Performance: high power density for controlling high flow rates in compact design
• Standard ratings: pressure up to 16 bar; nominal size up to 4 mm
• Customization: tailored solutions on request
