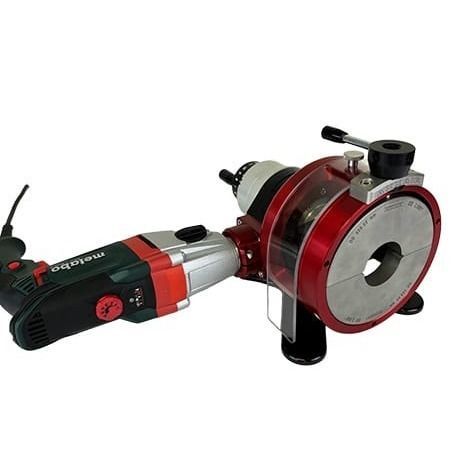

Portable tube squaring machine DC115-AM

electric

Overview
The AXXAIR DC115-AM is an orbital tube facing and squaring machine designed for precision end-preparation of thin‑walled and small‑diameter tubes. With a tube OD range of 0.5–4.5" (12–115 mm), the DC115-AM produces perpendicular, burr‑free ends and a smooth surface finish suitable for high‑quality welding and assembly. Portable and simple to set up, it reduces rework compared with traditional cutting methods.

Applications

• Aerospace
• Automotive
• Pharmaceutical
• Semiconductor

Product Advantages

• Orbital facing ensures consistent, perpendicular tube ends and repeatable weld preparation.
• Portable, lightweight design for workshop and in‑situ use.
• Available in electric versions (110 / 220 V).
• Stainless steel collets and dedicated jaw sets ensure secure clamping for each diameter.
• Large opening pivot, graduated vernier scale and sliding toolholder allow fast setup, precise feed and easy diameter changes.
• Burr‑free facing, edge breaking and beveling (30° & 45°) using HSS TiAlN inserts; two tools can operate simultaneously to face and bevel in a single pass.

Accessories and Consumables

• Diameter‑specific collets / clamping jaws (stainless steel)
• Double‑edged HSS TiAlN inserts for longer cutting life and heat resistance

Specifications
DESCRIPTION: Electric
Part No.: DC115-AM1 / DC115-AM2
Diameter range: 0.5 – 4.5" / 12 – 115 mm
Beveling wall thickness capacity: Up to 0.118" / 3.0 mm
Minimal straight length of tube: 1.102" / 28 mm
Idle speed: Speed 1: 12 – 72 rpm; Speed 2: 34 – 207 rpm
Electric motor power: 1300 watt
Voltage: 110 or 220 volt
Frequency: 50 / 60 hz
Max acoustic radiation: 80 dB
Vibration level: < 2.5 m/s2
Unit weight: 11 kg / 24.25 lbs
Machine dimensions: 12.36 x 18.19 x 8.62" / 314 x 462 x 219 mm
Packing dimensions: 10.24 x 25.98 x 20.87" / 260 x 660 x 530 mm
Packing weight: 39.68 lbs / 18 kg

Technical specifications

• Model: DC115-AM
• TUBE OD RANGE: 0.5 – 4.5" / 12 – 115 mm
• Part numbers: DC115-AM1 / DC115-AM2
• Description: Electric
• Beveling wall thickness capacity: Up to 0.118" / 3.0 mm
• Minimal straight length of tube: 1.102" / 28 mm
• Idle speeds: Speed 1: 12 – 72 rpm; Speed 2: 34 – 207 rpm
• Electric motor power: 1300 W
• Voltage: 110 or 220 V
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 80 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 11 kg
• Machine dimensions: 314 x 462 x 219 mm
• Packing dimensions: 260 x 660 x 530 mm
• Packing weight: 18 kg
• Applications: aerospace, automotive, pharmaceutical, semiconductor (precision tube end preparation)
