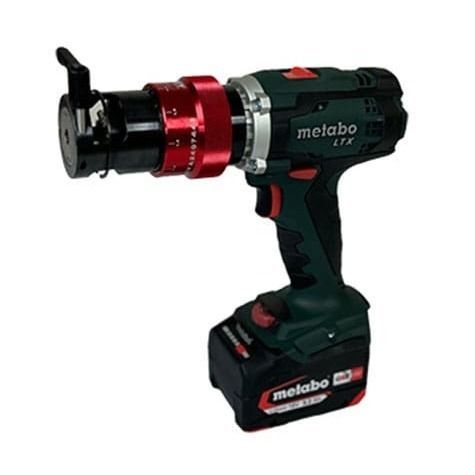

Electric tube squaring machine DC25

battery-poweredportable

Overview
The AXXAIR DC25 tube squaring machine is a precision end-preparation tool for facing and squaring tubes and pipes, optimized for thin-walled and small-diameter tubes. Its orbital facing system produces perpendicular, burr-free, smooth tube ends suitable for high-quality welding and assembly.

Tube OD Range
Tube OD range: 0.1 – 1" / 3 – 25.4 mm

Product Advantages

• Portable, lightweight design for workshop and on-site use.
• Available in battery (18 V) and electric (110 / 220 V) versions.
• Stainless steel collets ensure secure clamping on the tube.
• Spring-loaded handle, indexable wrist, large opening pivot and graduated vernier enable easy setup, locking and precise advancement.
• Burr-free facing achievable with HSS TiAlN double-sided inserts.

Technical Table (DC25 Battery vs DC25 Electric)
Part No. | DC25-MA1 / DC25-MA2 (Battery) | DC25-MS1 / DC25-MS2 (Electric)
Diameter range | 0.1 – 1" / 3 – 25.4 mm | 0.1 – 1" / 3 – 25.4 mm
Beveling wall thickness capacity | Up to 0.118" / 3.0 mm | Up to 0.118" / 3.0 mm
Minimal straight length (standard jaws) | 0.354" / 9 mm (Battery) | 0.543" / 9 mm (Electric)
Minimal straight length (microfitting jaws) | 0.196" / 5 mm | 0.196" / 5 mm
Idle speed | Battery: Speed 1: 0 – 500 rpm; Speed 2: 0 – 1700 rpm | Electric: Speed 1: 180 – 1080 rpm; Speed 2: 510 – 3100 rpm
Electric motor power | n/a | 1300 W
Voltage | 18 V (Battery) | 110 / 220 V (Electric)
Frequency | Charger 50 / 60 Hz (Battery) | 50 / 60 Hz (Electric)
Max acoustic radiation | 82 dB | 83 dB
Vibration level | < 2.5 m/s2 | < 2.5 m/s2
Unit weight | 5.51 lbs / 2.5 kg | 5.51 lbs / 2.5 kg
Machine dimensions | Battery: 285 x 220 x 75 mm | Electric: 300 x 370 x 76 mm
Packing dimensions | 480 x 350 x 180 mm | 480 x 350 x 180 mm
Packing weight | 17.64 lbs / 8 kg (Battery) | 15.43 lbs / 7.7 kg (Electric)

Accessories & Consumables (high-level)

• HSS TiAlN coated double-sided inserts (two cutting edges).
• Stainless steel collets for secure clamping.
• Standard and microfitting jaws to reduce minimal straight length requirements.

Technical specifications

• Model: DC25
• Tube OD range: 0.1 – 1" / 3 – 25.4 mm
• Part numbers: DC25-MA1 / DC25-MA2 (Battery); DC25-MS1 / DC25-MS2 (Electric)
• Beveling wall thickness capacity: up to 0.118" / 3.0 mm
• Minimal straight length (standard jaws): Battery 0.354" / 9 mm; Electric 0.543" / 9 mm
• Minimal straight length (microfitting jaws): 0.196" / 5 mm
• Idle speeds: Battery Speed1 0–500 rpm / Speed2 0–1700 rpm; Electric Speed1 180–1080 rpm / Speed2 510–3100 rpm
• Electric motor power: Electric 1300 W
• Voltage: Battery 18 V; Electric 110 / 220 V
• Frequency: 50 / 60 Hz
• Max acoustic emission: 82 dB (Battery) / 83 dB (Electric)
• Vibration level: < 2.5 m/s2
• Unit weight: 5.51 lbs / 2.5 kg
• Machine dimensions: Battery 285 x 220 x 75 mm; Electric 300 x 370 x 76 mm
• Packing dimensions: 480 x 350 x 180 mm
• Packing weight: Battery 17.64 lbs / 8 kg; Electric 15.43 lbs / 7.7 kg
