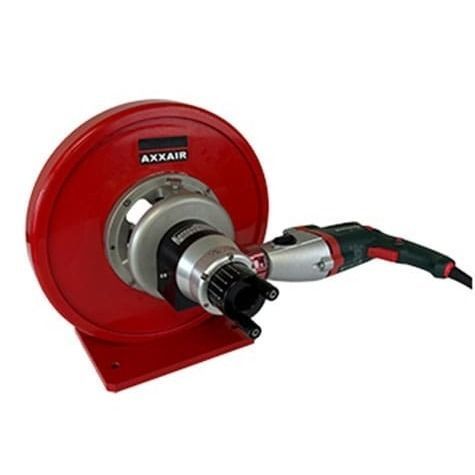

Portable tube squaring machine DC115-BMx

electric

Product overview
The AXXAIR DC115-BM tube facing and squaring machine with concentric clamping is a portable orbital-facing tool designed for precision end-preparation of thin-walled tubes and pipes across a wide diameter range. It produces perpendicular, burr-free ends with a smooth finish suitable for high-quality welding and assembly. The concentric clamping system adapts to different diameters using a set of four stainless-steel concentric jaws, ensuring consistent centring during machining.

Applications

• Aerospace, automotive, pharmaceutical and semiconductor production.
• On-site maintenance and workshop tube preparation.
• Welding preparation and precision assembly operations.

Key features

• Portable, lightweight design for workshop and in situ use.
• Electric versions: 110 / 220 V.
• Concentric clamping with 4 stainless-steel jaws for secure, centred gripping.
• Large-opening pivot and graduated vernier for precise feed and easy diameter change.
• Burr-free facing, edge breaking and beveling (30° & 45°) with HSS TiAlN inserts.
• Capacity to mount two tools simultaneously for facing and beveling in one pass.
• Optional mounting on AXXAIR support bench with height-adjustable table.

Specifications

• DESCRIPTION: Electric
• Part No.: DC115-BM1 / DC115-BM2
• Diameter range: 0.5 – 4.5" (12 – 115 mm)
• Beveling capacity (wall thickness): up to 0.118" (3.0 mm)
• Minimal straight tube length required: 2.283" (58 mm)
• Idle speeds: Speed 1: 12–72 rpm; Speed 2: 34–207 rpm
• Motor power: 1300 W
• Voltage: 110 or 220 V; Frequency: 50/60 Hz
• Acoustic emission: max. 80 dB; Vibration level: < 2.5 m/s2
• Unit weight: 37 kg (81.57 lbs)
• Machine dimensions (W x L x H): 392 x 562 x 405 mm
