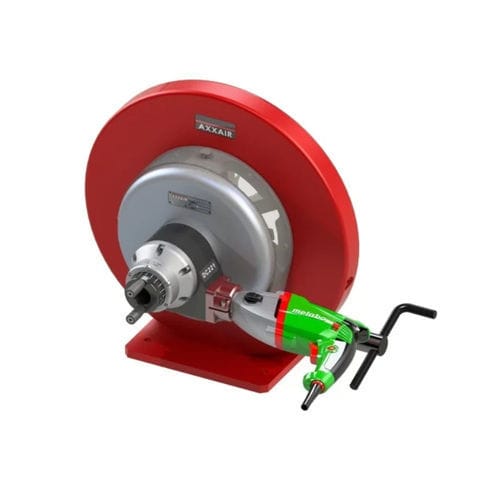

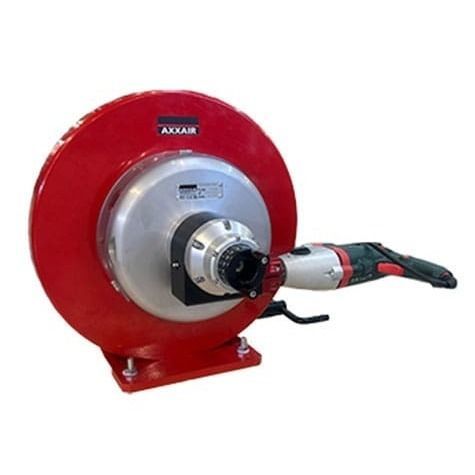

Portable tube squaring machine DC221-BM

electric

Overview The AXXAIR DC221-BM tube squaring machine with concentric clamping is a precision orbital facing tool for thin-walled tubes across the 2 – 8.5" / 50 – 220 mm range. Its orbital facing produces perpendicular, burr-free ends with a smooth surface finish required for high-quality welding and assembly. The concentric clamping system (set of 6 stainless steel jaws) adapts quickly to different diameters while protecting the tube during clamping.

Applications Ideal for aerospace, automotive, pharmaceutical, semiconductor and other industries where accurate, weld-ready tube end preparation is essential.

Product Advantages

• Portable, lightweight orbital facing model suitable for both workshop and in-situ use.
• Available in electric versions (110 / 220 V).
• Concentric clamping with 6 stainless steel jaws provides consistent tube protection and simple diameter adaptation.
• Large-opening pivot, graduated vernier for precise feed and sliding tool-holder adjustment simplify setup and diameter changes.
• Burr-free facing, edge breaking and 30° & 45° bevelling using double-sided HSS TiAlN inserts.
• Up to three tools can be used simultaneously; facing and bevelling can be performed in a single operation.
• Optional mounting on an AXXAIR support bench with height-adjustable table.

Additional product details (from page content) The DC221-BM employs orbital facing technology and double-sided HSS TiAlN-treated inserts to improve insert stability and heat resistance. It accepts thin-walled tubes and delivers weld-ready, burr-free finishes. The machine is portable for workshop and in-situ operations.

Technical specifications

• DESCRIPTION: Electric
• Part No.: DC221-BM1 / DC221-BM2
• Diameter range: 2 – 8.5" / 50 – 220 mm
• Bevelling wall thickness capacity: Up to 0.118" / 3.0 mm
• Minimal straight length of tube: 2.440" / 62 mm
• Idle speed: Speed 1: 12 – 72 rpm; Speed 2: 34 – 207 rpm
• Electric motor power: 1300 watt
• Voltage: 110 or 220 volt
• Frequency: 50 / 60 Hz
• Max acoustic radiation: 80 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 55 kg / 121.25 lbs
• Machine dimensions: 16.83 x 24.66 x 19.80" / 427.5 x 626 x 503 mm
• Packing dimensions: 37 x 20.87 x 33.46" / 940 x 530 x 850 mm
• Packing weight: 119 lbs / 54 kg
