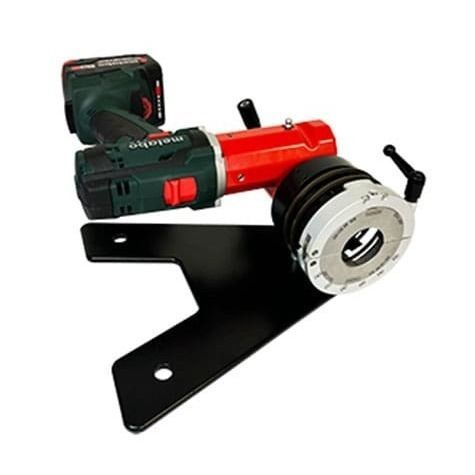

Battery-powered tube squaring machine DC65

electricportable

Product overview
AXXAIR DC65 is a precision tube facing and squaring machine for facing, edge‑breaking and bevelling of thin‑walled and small‑diameter tubes. It produces perpendicular, burr‑free ends with a smooth finish suitable for welding preparation and assembly.

Key features

• Portable, lightweight design for workshop and in‑situ use
• Available in battery (DC65 Battery) and electric (DC65 Electric) versions
• Stainless steel collets for concentric, secure clamping
• Spring‑loaded handle, indexable wrist and large‑opening pivot for fast setup and locking
• Graduated vernier scale for accurate feed control
• Burr‑free facing, edge‑breaking and bevelling (30° & 45°) with HSS TiAlN double‑edged inserts
• Ability to fit two tools simultaneously to perform facing and bevelling in one pass

Specifications

• Diameter range: 0.1 – 2.5" / 3 – 63.5 mm
• Bevelling angles supported: 30° and 45° (with appropriate inserts)
• Insert type: HSS TiAlN, double‑edged
• Clamping: stainless steel collets
• Minimal straight tube length (standard jaws): 0.393" / 10 mm
• Idle speed (Battery): Speed 1 180–1080 rpm; Speed 2 510–3100 rpm
• Idle speed (Electric): Speed 1 24–144 rpm; Speed 2 68–413 rpm
• Electric motor (Electric): 1300 W
• Battery voltage: 18 V; Electric voltage: 110 / 220 V
• Noise: max acoustic radiation 83–85 dB
• Vibration level: < 2.5 m/s2
• Unit weight: 5.5 kg / 12.12 lbs
• Machine dimensions (Battery): 139 x 254 x 325 mm; (Electric): 132 x 393 x 340 mm

Advantages / notes

• Designed for precision facing of thin‑walled and small‑diameter tubes
• Delivers burr‑free, perpendicular ends required for reliable welding joints
• Orbital facing process provides a cleaner finish compared with conventional cutting
• Choice of battery or electric versions for workshop or field operations

Applications

• Aerospace, automotive, pharmaceutical and semiconductor tube preparation
• Any application requiring burr‑free, perpendicular tube ends prior to welding or assembly
