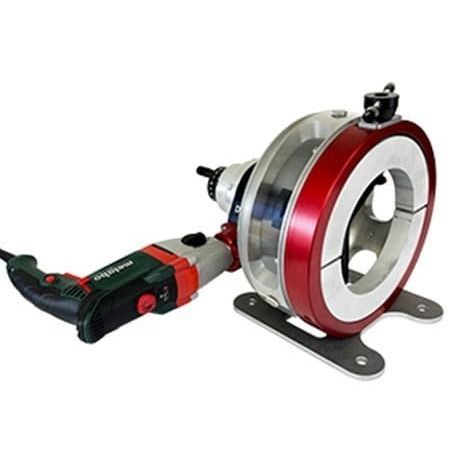

Electric tube squaring machine DC221-AM

portable

Overview
The AXXAIR DC221-AM is a portable tube-facing and squaring machine for precision end-preparation of tubes and pipes, especially thin-walled sections. Its orbital facing system produces perpendicular, burr-free tube ends with smooth surface finish, facilitating consistent high-quality welding and assembly.

Key data
TUBE OD RANGE: 2 – 8.5" / 50 – 220 mm

Product advantages

• Portable, lightweight design for workshop and on-site use.
• Available in electrical versions (110 / 220 V).
• Stainless-steel collets and diameter-specific jaws ensure secure clamping.
• Large-opening pivot, vernier scale for precise feed and sliding tool-holder for easy diameter changes and optimized insert wear.
• Burr-free facing, edge breaking and bevelling (30° & 45°) with HSS TiAlN inserts.
• Supports up to three tools simultaneously; facing and bevelling can be carried out in a single pass.

Specifications
DESCRIPTION: Electric
Part No.: DC221-AM1 / DC221-AM2
Diameter range: 2 – 8.5" / 50 – 220 mm
Bevelling wall thickness capacity: Up to 0.118" / 3.0 mm
Minimal straight length of tube: 1.535" / 39 mm
Idle speed: Speed 1: 12 – 72 rpm; Speed 2: 34 – 207 rpm
Electric motor power: 1300 watt
Voltage: 110 or 220 volt
Frequency: 50 / 60 hz
Max acoustic radiation: 80 dB
Vibration level: < 2.5 m/s2
Unit weight: 21 kg / 24.25 lbs
Machine dimensions: 16.22 x 20.67 x 12.87" / 412 x 525 x 327 mm
Packing dimensions: 20.08 x 25.6 x 14.57" / 510 x 650 x 370 mm
Packing weight: 74.96 lbs / 34 kg

Characteristics / technical specifications

• Model: AXXAIR DC221-AM (DC221-AM1 / DC221-AM2)
• Diameter range: 50 – 220 mm (2 – 8.5")
• Max wall thickness for bevelling: 3.0 mm (0.118")
• Minimal straight tube length: 39 mm (1.535")
• Idle speeds: 12–72 rpm (Speed 1); 34–207 rpm (Speed 2)
• Motor power: 1300 W
• Voltage options: 110 V or 220 V
• Frequency: 50/60 Hz
• Acoustic emission: 80 dB
• Vibration level: < 2.5 m/s²
• Unit weight: 21 kg
• Machine dimensions: 412 x 525 x 327 mm
• Packing weight/dimensions: 34 kg / 510 x 650 x 370 mm
• Inserts: HSS TiAlN double-sided
