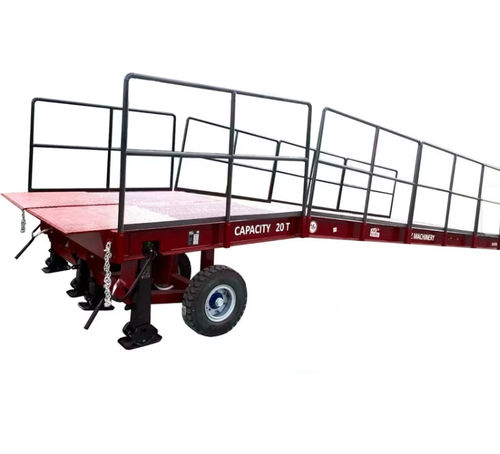

Large Mobile Dock Ramp, Detachable for Multiple Possibilities.
Brand: AZ RAMP - Model: KING VERSION, BIG FOOT L 20 T
Capacity: 20,000 Kg
Total Length: 10.25 m
Total Width (Coupled): 3.04 m / Useful Width: 3.04 m
Total Width (Decoupled): 1.524 m
Penetrating Lip: 30 cm
Height Adjustment via Hydraulic Crank: Minimum Height: 0.90 m - Maximum: 1.40 m
4 Adjustable Support Legs, Hot-Dip Galvanized Non-Slip Perforated Steel Grating, Non-Slip Wear Plate, 2 Tie-Down Chains. Ramp Mounted on Pneumatic Tires, 2 Adjustable Support Legs per Piece.
Slopes: Minimum: 11.39% - Maximum: 17.72%
Applications: Ideal for loading military vehicles, armored vehicles, combat vehicles, use in scrap yards, waste disposal sites, construction sites requiring the loading/unloading of bulky equipment, large machines. Detachable into two identical mobile and independent parts, it allows you to unload all types of machines regardless of their width. Its full access platform allows easy access with all types of handling and construction equipment. The two parts of the ramp can be used independently or together.
