Platform loading ramp STAR-10T

applicationswheelpump

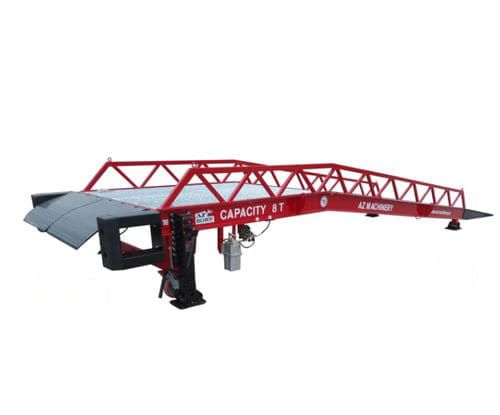

Mobile loading ramp with hydraulic tilting bridge Length Flat-shaped horizontal: 3.31 m Input tray length: 2.10 m - Output lip length: 0.74 m Empty weight: 2,810 kg Adjustable lifting height: Mini: 1.00 m - Max: 1.60 m Slope: Min: 16.5% - Max: 22.37% The + Product: Inlet tray and outlet lips hydraulically folded by hand pump. Descent and mounted wheels via hydraulic crank. Designed for use with 3 and 4 wheel forklift. 4 Support feet with adaptive heads Side safety rails height 35 cm, removable Anti-slip surface in hot galvanized grating 2 lashing chains included Applications: The STAR model is very appreciated by logisticians, industrialists, it also makes it possible to answer certain constraints of the centers of formation driver according to the new RECO R.489. Passing tests of Categories 1 and 3.
