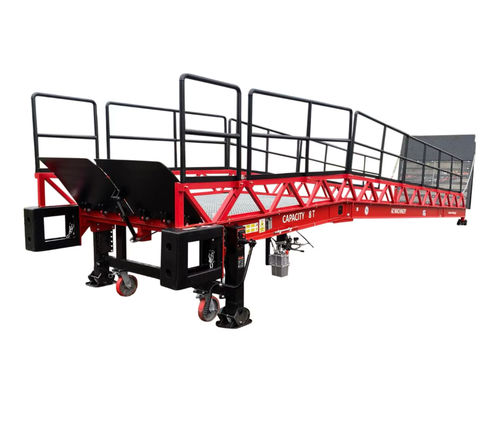

Mobile loading ramp STAR- OTC-12T

hydraulichandgalvanized

Mobile loading ramp with hydraulic tilting bridge Brand: AZ RAMP - Type: STAR-OTC- 12T Load capacity: 12 000 Kg Dimensions: Total length deployed: 13.136 m Overall Width: 2.07 m - Useful Width (Inside): 1.96 m Length Inclined plane / Inclined part: 10.06 m Length Flat-shaped horizontal: 3.076 m Adjustable lifting height: Mini: 1.00 m - Max: 1.60 m Slope: Min: 9.94 % - Max: 15.90 % The + Product: Inlet tray lips hydraulically folded by hand pump. Descent and mounted wheels via hydraulic crank. Designed for use with 3 and 4 wheel forklift. 4 Support feet with adaptive heads . Supporting legs 50 ton capacity Side safety rails height 1.20m, removable Anti-slip surface in hot galvanized grating 2 lashing chains included dock with rolls bumpers Applications: The STAR model is very appreciated by logisticians, industrialists, it also makes it possible to answer certain constraints of the centers of formation driver according to the new RECO R.489. Passing tests of Categories 1 and 3.
