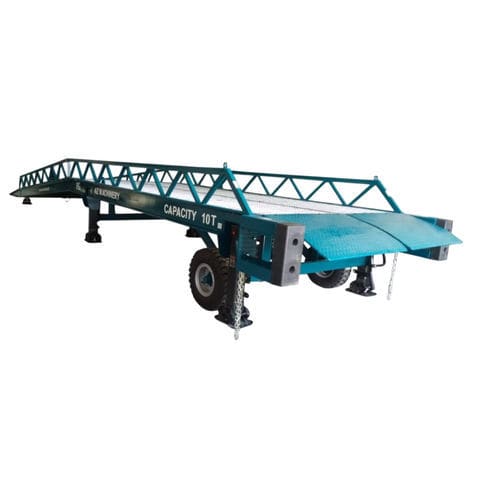

Platform loading ramp STAR-10-XL-E

truckmobileelectro-hydraulic

Wide Mobile loading ramp with electro-hydraulic tilting bridges Load Capacity: 10,000 Kg Dimensions: Total length extended: 10.55 m Total Width: 2.77 m - Useful Width (Interior): 2.59 m ( Safety barriers can be dismanteled for use the total wide of 2 770 mm if necessary) Length Inclined plane / Inclined part: 7.11 m Horizontal platform length: 3.07 m Input tray Length : 2.06 m - Length of outlet lips: 0.50 m Adjustable lifting height: Mini: 1.00 m - Maxi: 1.60 m Slope: Min: 15.47% - Max: 22.50% The + Product: Electric lifting of the inlet and outlet tilting lips (Three-phase 380V-50Hz). Wide ramp, with large horizontal plane when exiting the truck. Intended for use with 3 and 4 wheel forklift, storage, rolls, etc. 4 height-adjustable support legs with adaptive heads Side safety rails 35 cm high, removable Hot-dip galvanized grating non-slip running surface 2 lashing chains included, ramp mounted on inflatable tires. Quay ridges with 500 mm refuge area in option ( + 500 €HT ) Applications: The STAR-XL-E model is very popular with logisticians and manufacturers, machinery dealers, brokers.
