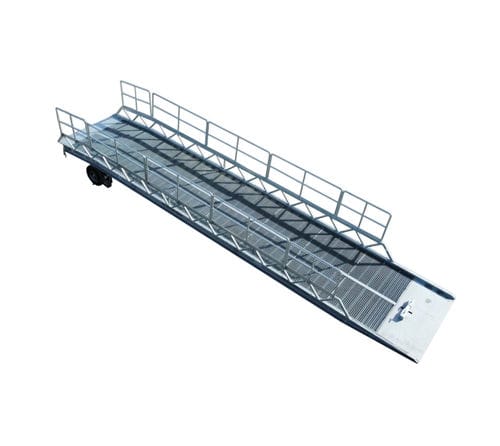

Pump ramp EASYXL8_Full_Galva

pallettruckmachines

Mobile Loading Ramp for Mixed Terrain Use Overall width outside: 7 ft 8 in (2,256 mm) / Inside width (usable): 6 ft 10 in (2,100 mm) Truck penetration: 9.8 in (250 mm) Ramp leveling by manual hydraulic pump: Minimum height: 2 ft 11 in (900 mm) Maximum height: 5 ft 1 in (1,550 mm) Fully hot-dip galvanized structure, 1.57 in (40 mm) thick non-slip grating tread surface (the thickest on the market offering unmatched robustness). 2 lashing chains, retractable quick central tow hook for movement via forklift forks, ramp mounted on pneumatic tires for movement on the most uneven terrain, 13.78 in (350 mm) high side safety rails Slopes: Min: 9.00% - Max: 15.5% Allowing its use with the largest number of existing machines (pallet trucks, stackers, mini-cranes, etc.) Applications: Specially designed for mixed use, its use on uneven surfaces such as dirt, gravel, and damaged soil will be very effective. Loading/unloading of flatbed or tautliner trucks, wagons, and sea containers. Advantages: Sturdy and durable: designed for intensive use Easy to use: hydraulic system for effortless raising and lowering Safe: numerous safety features for confident use Versatile: adapts to different types of vehicles and loading docks
