Pump loading ramp EASY XL-20-BCH

platformtruckflexible

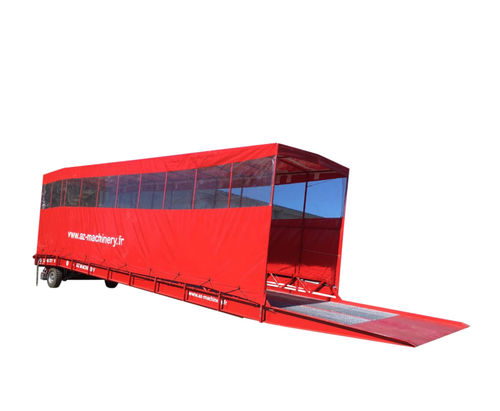

Mobile loading ramp on superelastic tyres with Covered Tunnel PE Protection designed for outdoor use Brand: AZ RAMP - Type: EASY-XL 20- BCH, Loading capacity: 20,000 Kg Total length: 11,850 mm Inclined Plane Length: 10,000 mm / Horizontal Plane Length: 1,850 mm Total Exterior Width: 2350 mm / Interior Width (Usable): 2100 mm Penetration in the truck: 340 mm Covered tunnel with translucent part, height 2,680 mm Leveling of the boom by manual hydraulic pump: Mini height: 900 mm -Maximum height: 1600 mm Hot-dip galvanized structure, non-slip slatted running surface 2 Tie-down chains, Quick coupling hook for movement via forklift fork, ramp mounted on flexible solid tires, side castors height 350 mm Slopes: Mini: 9.00% - Maxi: 15.5% Applications: Specially designed for outdoor use on mixed terrain, its use on uneven surfaces such as dirt, gravel, damaged soils will be very efficient Loading / Unloading of Flatbed or Tautliner type trucks, wagons, containers maritime. The + Products: The AZ RAMP - EASY XL-BCH range is made of heavy, hot-dip galvanized steel. Its full access platform will allow you easy access to all types of handling equipment, including electric pallet trucks, pallet stackers, 3-wheel or 4-wheel electric forklifts. The covered tunnel allows the unloading of goods sensitive to weather conditions.
