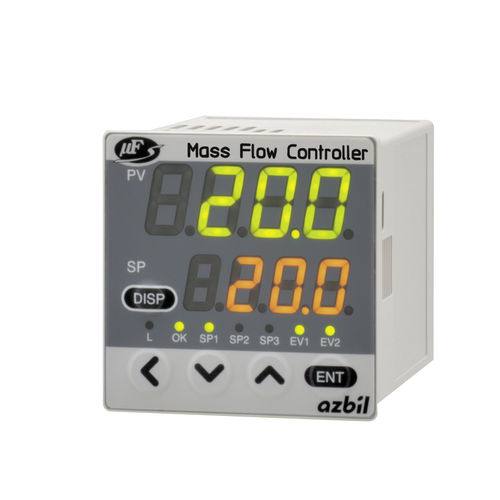

Mass flow controller MPC
for gasdigitalcompact

mass flow controller
mass flow controller
mass flow controller
Add to favorites
Compare this product


Characteristics

Technology
mass
Fluid
for gas
Other characteristics
digital, compact, analog, panel-mount
Flow rate

Min.: 0 l/min (0 us gal/min)

Max.: 20 l/min (5 us gal/min)

Pressure

Min.: 0 Pa (0 psi)

Max.: 500,000 Pa (73 psi)

Description

World's smallest (48 mm² x 73 mm deep) and lightest (300g) mass flow controller. Description Panel-mount mass flow controllers in the MPC series combine our proprietary ultra high-speed mass flow sensor with a compact proportioning solenoid valve, a new flow channel structure, and advanced actuator control technology. Controllers can be installed on the front of a panel. Features * - Small and Light mass flow controller Compact (front panel: 48 x 48 mm, depth: 73,7 mm) and light (300g) panel mounting body contains a built-in miniature proportioning valve, enabling full-automated flow control * - Azbil's original mass flow sensor High speed (1 sec.), high accuracy (2% FS) flow control unaffected by pressure and temperature fluctuations * - Easy operation and easy mounting Easy operation and easy mounting even for the purge meter users. Once the flowrate set point is set, all the operations are automatically done by the MPC. External set point change (from PLC or host systems) is easy, using optional analog setting input function or communication function (RS-485). * - Pipe connections and electrical wiring terminals are arranged on the rear of the body, enabling easy mounting. Wiring is easy by connector type terminal
