Plug valve
manualpurgefor water

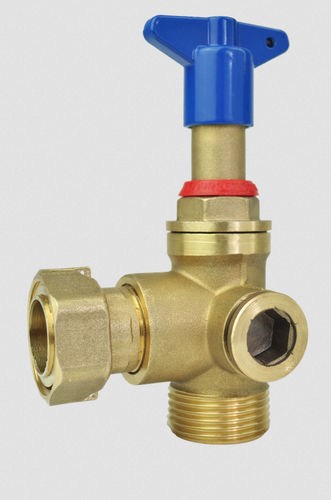

Plug valve - Baterias Gatell S.A - manual / purge / for water
Plug valve - Baterias Gatell S.A - manual / purge / for water
Plug valve - Baterias Gatell S.A - manual / purge / for water - image - 2
Add to favorites
Compare this product

Characteristics

Type
plug
Operation
manual
Function
purge
Media
for water
Body
threaded, seat
Material
brass
Associated function
outlet
Other characteristics
vertical
DN

20 mm
(0.787 in)

Pressure

16 bar
(232.1 psi)

Description

Body: CW617N stamped brass.. Shaft: machined brass CW614N Stamped brass stuffing box CW617N O-rings: NBR 70 SH Plug: vulcanized brass EPDM 70 SH Seat: polyacetal Handle: stamped brass CW617N Screw: brass DIN-84 Complies with all UNE 19804 specifications Test pressure : 25 bar 1/2” RH bleed outlet with cylindrical plug 14 mm int. hex. INV: Inverted

Catalogs

No catalogs are available for this product.

See all of Baterias Gatell S.A‘s catalogs

Other Baterias Gatell S.A products

Valves for water meters
