Plug valve
manualpurgefor water

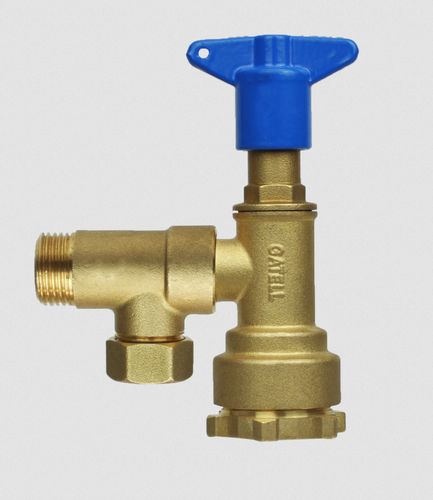

Plug valve - Baterias Gatell S.A - manual / purge / for water
Plug valve - Baterias Gatell S.A - manual / purge / for water
Add to favorites
Compare this product

Characteristics

Type
plug
Operation
manual
Function
purge
Media
for water
Body
male
Applications
for pipes
Material
brass
Associated function
outlet, backflow
Other characteristics
standard, with seal, vertical
DN

15 mm, 20 mm
(0.591 in, 0.787 in)

Temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

CW617N stamped brass body according to UNE-EN 12165 standard. With drilled ear for sealing. CW617N stamped brass handle according to UNE-EN 12165 standard, with hole for seal. Brass bar mounting shaft according to UNE-EN 12166 standard. EPDM O-rings according to UNE-EN 681-1. EPDM O-ring seal according to UNE-EN-681-1. Backflow preventer in EPDM (DN13) (*) or in stamped brass. CW617N with EPDM seal (DN20) according to UNE-EN 681-1.
