hydraulic press / forming / for production / high-pressure
Triform 24-5FC

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

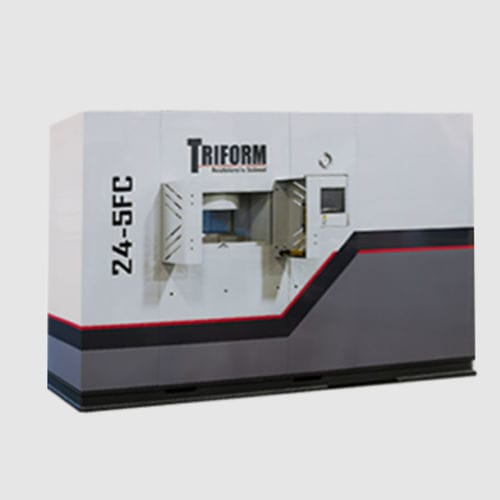

hydraulic press hydraulic press - Triform 24-5FC
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    forming

  • Other characteristics:

    for production, high-pressure, with front loading/unloading, for industrial applications, for composite materials, for aluminum, for the aerospace industry, for composite parts, for the aeronautical industry, for composite aeronautical parts

  • Force:

    Max.: 2.5 tf

    Min.: 2.5 tf

Description

With a 24”-diameter forming area and 5,000 PSI of pressure, the Triform model 24-5FC fluid cell sheet hydroforming press is one of the most versatile models available on the market today. Ideal for low-volume, high-mix production, this press can form several parts of varying geometries and sizes in a single cycle in under 20 seconds. The unique pressure containment system on the 24-5FC significantly reduces the press’ size and weight without sacrificing structural integrity or durability. Additionally, the compact flush-floor design uses minimal floor space and does not require any pits or special foundations.

Features of Triform Fluid Cell Sheet Hydroforming Presses:
Programmable Bladder Pressure
System Diagnostics
Alarm Handling and Logging
Multi-level Password Protection
PLC Input/ Output Visualization
Batch Counter
Average Cycle Timer
Standard VPN connection via Ethernet allows for remote factory support through PressLink
