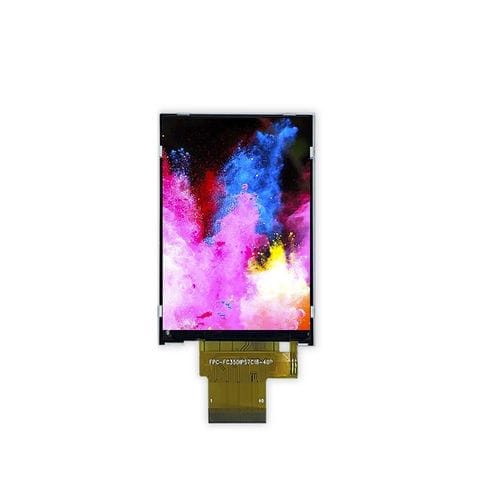

TFT display module LI48320T035IB3098IPScolor320 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, IPS
- Type
- color
- Format
- 320 x 480
- Screen size
- 3.5"
- Applications
- industrial, for medical equipment, for control panels
- Interface
- RGB
- Other characteristics
- cost-effective
- Width
54.5 mm
(2.1457 in)- Height
83 mm
(3.2677 in)- Thickness
2.1 mm
(0.083 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
DWIN 3.5 Inch 320*480 RGB 40pins 300nits IPS TFT LCD Display Module LCD Screen Capacitive Resistive Touch Panel Lcd Panel Screen
Specification:
Resolution: 320(H)*480(V)
Pixel Pitch: 0.153(H)*0.153(V)
Viewing Direction: ALL
Outside Dimension: 54.5mm*83.0mm*2.1mm
Active Area: 48.96mm*73.44mm
Luminance: 300nits
LED Numbers: 6 LEDS
Interface: RGB_24bit 40PIN_0.5mm
Color Depth: 262K
Driver IC: ST7796-G4
Operating Temp.: -20~70℃
Storage Temp.: -30~80℃
