TFT LCD display module LN80480T070IA9098TN800 x 4807"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, TN
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- industrial, for control panels
- Interface
- RGB
- Other characteristics
- cost-effective, high-brightness
- Length
164.9 mm
(6.492 in)- Width
100 mm
(3.937 in)- Thickness
5.6 mm
(0.22 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description

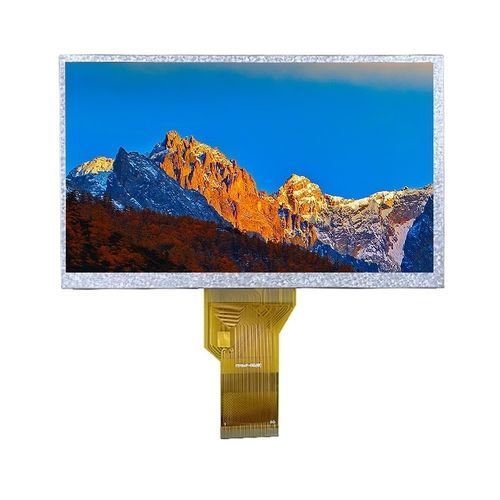

DWIN 7 Inch High Brightness 800*480 900nits RGB TN TFT LCD Display Module Capacitive Resistive Touch Lcd Panel Touch Screen
Specification:
Resolution: 800(H)*480(V)
Pixel Pitch: 0.193(W)*0.179(H)
Viewing Direction: 6 o’clock
Outside Dimension: 164.9mm*100.0mm*5.6mm
Active Area: 154.08mm*85.92mm
Luminance: 900nits
LED Numbers: 30 LEDS
Interface - RGB_24bit 50PIN_0.5mm
Color Depth: 16.7M
Driver IC: EK73002+EK9713/ ILI6122+ILI5960
Operating Temp.: -20~70℃
Storage Temp.: -30~80℃
