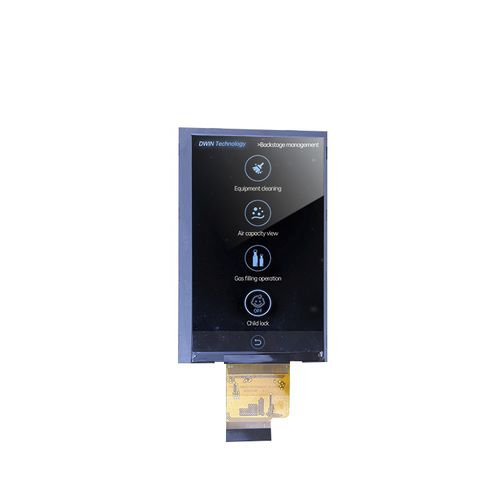

TFT LCD display module LI48800T043TC3098
IPScapacitive touch screenresistive touch screen

TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen
TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen
TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 2
TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 3
TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 4
TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 5
TFT LCD display module - LI48800T043TC3098 - Beijing DWIN Technology Co., Ltd. - IPS / capacitive touch screen / resistive touch screen - image - 6
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, IPS, capacitive touch screen, resistive touch screen
Type
color
Format
480 x 480
Screen size
4.3"
Applications
industrial, for medical equipment, for control panels
Interface
RGB
Other characteristics
cost-effective, wide-viewing angle, with built-in electronics
Length

67.1 mm
(2.642 in)

Width

105.4 mm
(4.1496 in)

Thickness

3 mm
(0.118 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

DWIN 4.3 Inch 24bit RGB 480x800 Resistive Touch IPS TFT LCD Module Display LCD Touch Screen Specification: Resolution: 480(H)*800(V) Pixel Pitch: 0.117(H)*0.117(V) Viewing Direction: ALL Outside Dimension: 67.1mm*105.4mm*3.0mm Active Area: 56.16mm*93.60mm Luminance: 300nits LED Numbers: 10 LEDS Interface: RGB_24bit 40PIN_0.5mm Color Depth: 16.7M Driver IC: ST7701S Operating Temp.: -20~70℃ Storage Temp.: -30~80℃
