TFT LCD display module LN80480T050IA4098
TNcapacitive touch screenresistive touch screen

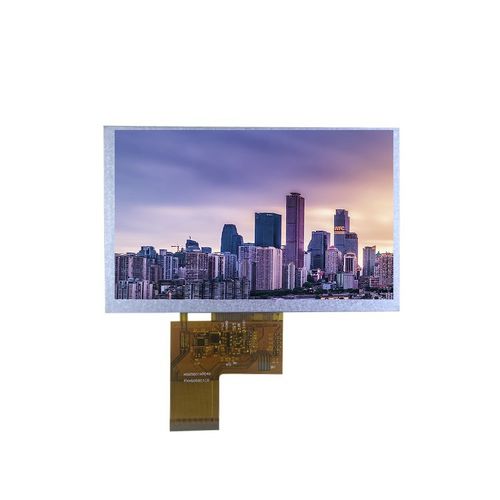

TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen
TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen
TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen - image - 2
TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen - image - 3
TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen - image - 4
TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen - image - 5
TFT LCD display module - LN80480T050IA4098 - Beijing DWIN Technology Co., Ltd. - TN / capacitive touch screen / resistive touch screen - image - 6
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, TN, capacitive touch screen, resistive touch screen
Type
color
Format
800 x 480
Screen size
5"
Applications
for control panels
Interface
RGB
Other characteristics
cost-effective, with built-in electronics
Length

120.7 mm
(4.752 in)

Width

75.8 mm
(2.9843 in)

Thickness

3 mm
(0.118 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

DWIN 5" 800*480 RGB 40Pin 400nits Tft Lcd Module Lcd Display Resistive Capacitive Touch Panel Touch Screen Specification: Resolution: 800(H)*480(V) Pixel Pitch: 0.135(W)*0.135(H) Viewing Direction: 6 o’clock Outside Dimension: 120.7mm*75.8mm*3.0mm Active Area: 108.0mm*64.8mm Luminance: 400nits LED Numbers: 12 LEDS Interface: RGB_24bit 40PIN_0.5mm Color Depth: 16.7M Driver IC: ILI6122/ILI6137A-00T004/EK9713CA+ ILI5960/EK73002AB2 Operating Temp.: -20~70℃ Storage Temp.: -30~80℃
