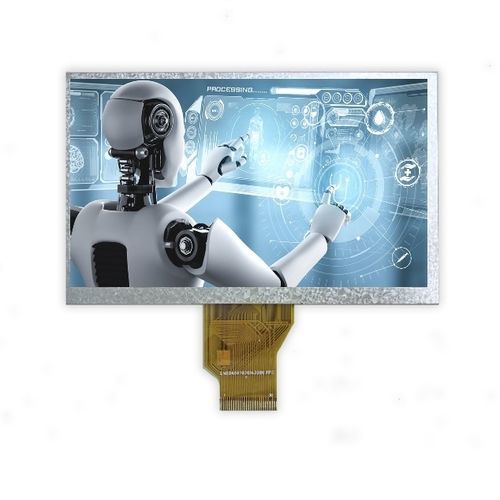

TFT LCD display module LN80480T070IC3098TN800 x 4807"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, TN
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- industrial
- Interface
- RGB
- Other characteristics
- cost-effective
- Length
165 mm
(6.496 in)- Width
100 mm
(3.937 in)- Thickness
3.5 mm
(0.138 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
DWIN 7 Inch 800x480 RGB TN TFT LCD Display Module Screen Resistive Capacitive Touch Screen Lcd Panel
Specification:
Resolution: 800(H)*480(V)
Pixel Pitch: 0.179(H)*0.193(V)
Viewing Direction: 6 o’clock
Outside Dimension: 165.0mm)*100.0mm*3.5mm
Active Area: 154.08mm*85.92mm
Luminance: 300nits
LED Numbers: 21 LEDS
Interface: RGB_24bit 50PIN_0.5mm
Color Depth: 16.7M
Driver Condition: 3.3V(Type)
Driver IC: ILI6137A+ILI5960
Operating Temp.: -20~70℃
Storage Temp.: -30~80℃
