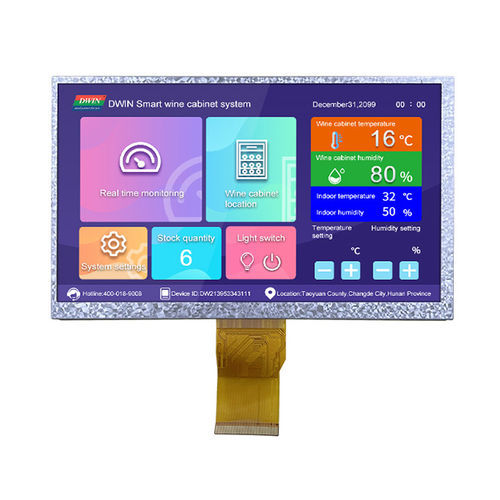

TFT LCD display module LI10600T070IA3098
IPScolor1024 x 600

TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600
TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600
TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600 - image - 2
TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600 - image - 3
TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600 - image - 4
TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600 - image - 5
TFT LCD display module - LI10600T070IA3098 - Beijing DWIN Technology Co., Ltd. - IPS / color / 1024 x 600 - image - 6
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD, IPS
Type
color
Format
1024 x 600
Screen size
7"
Applications
industrial
Interface
RGB
Other characteristics
wide-viewing angle
Length

165 mm
(6.496 in)

Width

100 mm
(3.937 in)

Thickness

3.5 mm
(0.138 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

DWIN Hot-selling 7 Inch 1024x600 IPS TFT LCD Module 24bit RGB Capacitive Resistive Touch Specification: Resolution: 1024(H)*600(V) Pixel Pitch: 0.0502(H)*0.1432(V) Viewing Direction: ALL Outside Dimension: 165.0mm*100.0mm*3.5mm Active Area: 154.21mm*85.92mm Luminance: 300nits LED Numbers: 21 LEDS Interface: RGB_24bit 50PIN_0.5mm Color Depth: 16.7M Driver IC: HX8282-A11DPD300+HX8696-A01APD300 EK79001HK + EK73215BCGA Operating Temp.: -20~70℃ Storage Temp.: -30~80℃
