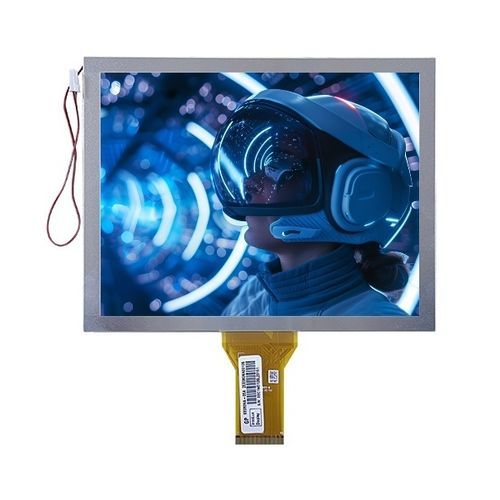

TFT LCD display module LN80600T080IA9098TNcapacitive touch screenresistive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, TN, capacitive touch screen, resistive touch screen
- Type
- color
- Format
- 800 x 600
- Screen size
- 8"
- Applications
- industrial
- Interface
- RGB
- Length
183 mm
(7.205 in)- Height
141 mm
(5.5512 in)- Thickness
5.6 mm
(0.22 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
DWIN 8 Inch 900nits High Brightness 800*600 RGB 50pins Capacitive Resistive Touch Panel TFT LCD Module Touch Screen LCD Display
Specification:
Resolution: 800(H)*600(V)
Pixel Pitch: 0.2025(H)*0.2025(V)
Viewing Direction: 6 o’clock
Outside Dimension: 183.0mm*141.0mm*5.6mm
Active Area: 162.0mm*121.5mm
Matching Connection Type: CN1:FH12A-50S-0.5H CN2:35001-HS-02
Luminance: 900nits
LED Numbers: 27 LEDS
Interface: RGB_24bit 50PIN_0.5mm
Color Depth: 16.7M
Driver IC: HX8264-E00DPD400 HX8677-A000PD400-A
Operating Temp.: -20~70℃
Storage Temp.: -30~80℃
