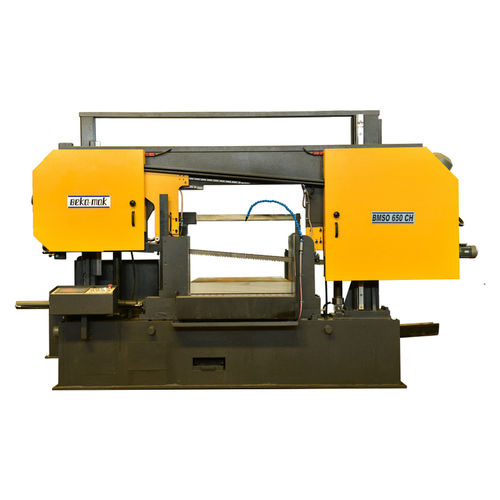

Band saw BMSO-650CH NC

for steelfor non-ferrous materialsfor profiles

Fully automatic Linear Way for cutting solid stocks,tubes and profiles of steel , cast-iron light and nonferrous material for cutting at only 90°. Complete steel fabricated. The rear jaw contains of a number of hardened rollers driven through a worm and wheel by an electric motor.The front vice consist of a number of free running rollers.A limit switch assemebled on top the vice stops the machine when the block is exhausted. Once the work piece is clamped between the rollers no further clamping needed. The work is fed through the vice to the bar stop which contains a micro-switch controlling the bar feed motor. A piece counter controls the number of the cuts.The machines stop automatically at the blade breakage. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. • fully automatic NC band saw for sawing thick-walled profiles and solid materials • robust constructed monoblock saw frame with hydraulic vertical motion and linear guide • Feed length in a train 500 mm • Cutting length and average number input via NC (programmable logic controller ) of " SIEMENS " for 10 different programs • continuously adjustable belt speed 20 - 100 m / min • hydraulic-mechanical belt tension • automatic machine shutdown at band breaks • accurate position measurement of the slide on magnetic scale • Sensitive cutting pressure regulation function of the material properties • Eilvorlauf the saw frame with automatic saw feed in transition ( light sensor ) • automatic Führungsarmverstellung , synchronously with hydraulic clamping of the horizontal vise
