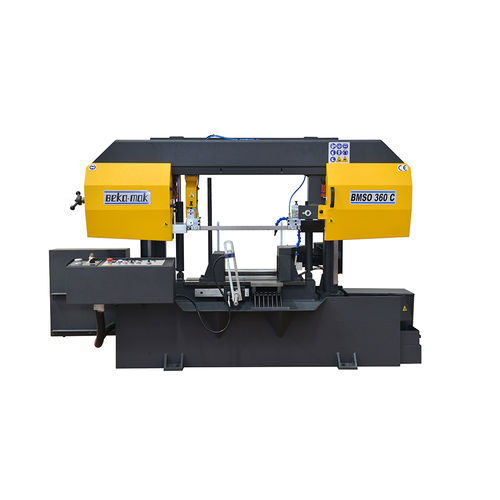

Band saw BMSO-360C

for steelfor profilesfor tubes

Fully automatic Linear Way for cutting solid stocks,tubes and profiles of steel , cast-iron light and nonferrous material for cutting at only 90°. Complete steel fabricated. The rear jaw contains of a number of hardened rollers driven through a worm and wheel by an electric motor.The front vice consist of a number of free running rollers.A limit switch assemebled on top the vice stops the machine when the block is exhausted. Once the work piece is clamped between the rollers no further clamping needed. The work is fed through the vice to the bar stop which contains a micro-switch controlling the bar feed motor. A piece counter controls the number of the cuts.The machines stop automatically at the blade breakage. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. Bi-Metal sawblade and 1,2 meters infeed roller table are supplied as standart. Optional Features • Chip Conveyor • ILC Microspray Device • Hydraulic Blade Tension • 3 Mt Material Roller Table Standard Features • Saw Blade 34 • Control Panel • Hydromechnic Blade Tension • Hydraulic Vice • Mecanic Top Clamping • Synchronisation Moveable Arm/Vice • 1,2 Mt Metarial Roller Table • Pressure Adjustment • Optical Height Adjustment • Heavy Duty Gearbox • Metarial Limit Shaft • Coolant Pomp • Lineer Way • Securty Swich • Saw Blade Brush • Inverter
