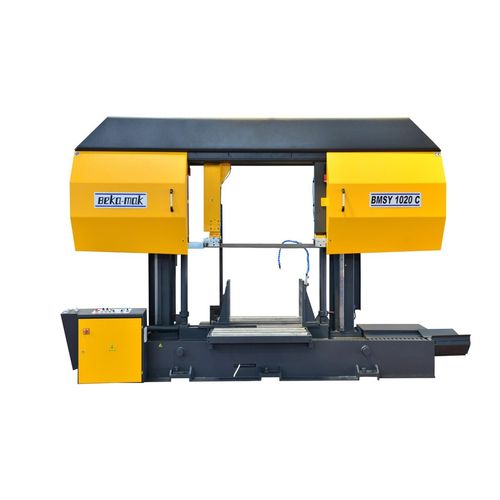

Band saw BMSY-1020C

horizontalfor metalsfor beams

Beka-Mak Twin-Pillar horizontal bandsaws have been designed to give a low cost compact and rugged machines.The bow is constructed in heavy gauge steel and mounted two chromed and grinding pillars offer a strong rigid sawframe, providing a high degree of accurancy when cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut and sawframe is lifted hydraulically up to the adjusted level. Optional Features • Chip Conveyor • Lazer Line Pointer • 2° inclined Blade • ILC Microspray Device • 3 Mt Motorized Roller Table • Hydraulic Top Clamping Standard Features • Control Panel • Blade Brash • linear Guides • Sensitive Pressure • Hydraulic Blade Tension • Hydraulic Vice • Optical Height Adjustment • Heavy Duty Gearbox • Invertor • Coolant Pomp • Input Output Feed Rollers • Security Switch • Saw Blade 54
