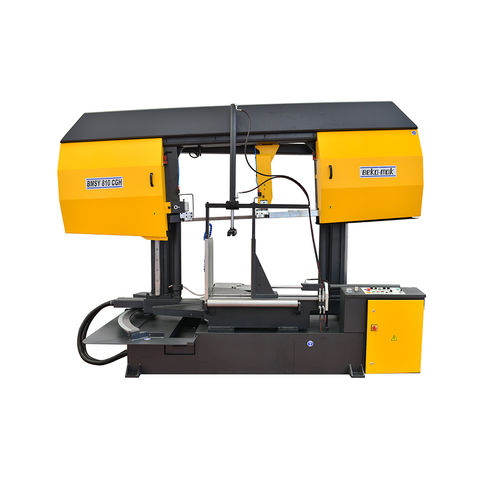

Band saw BMSY-810CGH

miterfor steelfor aluminum

Horizantal Bandsaws with linear guideways are ideal for mitre cuts with different quantities . With movement of bow its possible to cut between 90° and +30°. Cutting capacity at 90° is 810mm x 770mm for flat type and 810 mm for round shaped materials. With auto height adjustment sensors bow approachs the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled by digital counter on control panel and total duration for one cut decreases. Fixing the bow at any angle is controlled by hydraulical brake system and you can control it by another digital counter placed on main body of machine. Optional Features • Hydraulic Blade Tension • Hydraulic Top Clamping • Lazer Line Pointer • Chip Conveyor • 3 Mt Motorized Roller Table • 3 Mt Material Roller Table • ILC Microspray Device Standard Features • Digital Height Adjustment • Saw Blade 41 • Hydraulic Vice • Hyd. Clamping for Angle • Inverter • Hydromechnic Blade Tension • Security Switch • Adjustable Movable Arm/Vice • Lineer Way • Sensitive Pressure • Control Panel • Coolant Pump • Heavy Duty Gearbox • 3 inclined Blade • Saw Blade Brush
