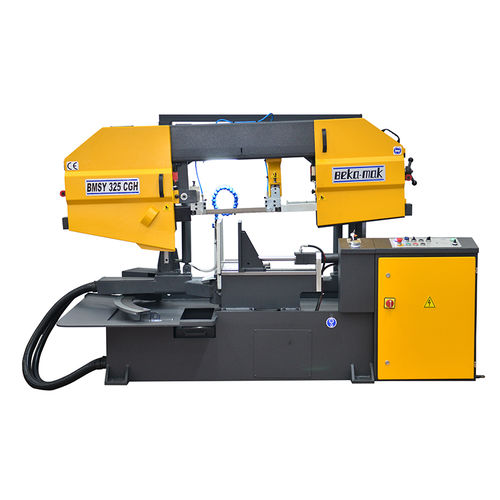

Band saw BMSY-325CGH
miterfor steelfor copper

band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band, miter
Treated material
for steel, for copper, for stainless steel
Applications
for profiles, profile, for pipe, for bars
Other characteristics
with roller conveyor, semi-automatic, horizontal, with cooling system, double-column, hydraulic, CE, inverter, high-speed, single-blade, with chip conveyor
Round piece diameter

190 mm, 305 mm, 325 mm
(7 in, 12 in, 13 in)

Description

Horizantal Bandsaws with linear guideways are ideal for mitre cuts with different quantities . With movement of bow it’s possible to cut between 90° and +30°. Cutting capacity at 90° is 320mm x 450mm for flat type and 325 mm for round shaped materials. With auto height adjustment sensors bow approachs the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled by digital counter on control panel and total duration for one cut decreases. Fixing the bow at any angle is controlled by hydraulical brake system and you can control it by another digital counter placed on main body of machine. Optional Features • ILC Microspray Device • Hydraulic Top Clamping • Hydraulic Blade Tension • Chip Conveyor • Lazer Line Pointer • 3 Mt Roller Table • 3 Mt Motorized Roller Table Standard Features • Lineer Way • Sensitive Pressure • Saw Blade 34 • Coolant Pump • Security Switch • Hydromechnic Blade Tension • Saw Blade Brush • Hydraulic Vice • Optical Height Adjustment • Cutting width adjustment lever • Heavy Duty Gearbox • 2 inclined Blade • Inverter • To Adjust Degree Panel • Fixing hydraulically • Control Panel
