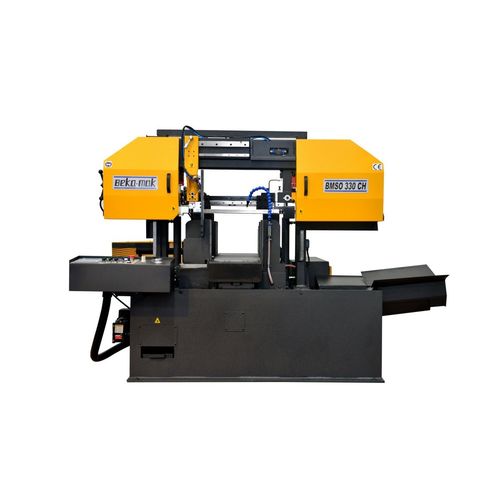

Band saw BMSO-330CH NC

for steelfor profilesfully-automatic

The BMSO.325 CH NC is a fully automatic machine in a two - column design that deal with your mid -section area (round up to 320 mm , flat 350 x 320 mm) ideally suited for cutting solid material , as well as pipes, profiles and beams in steel cutting ! With this machine, only 90 ° cuts are possible! Precision carbide blade guides , and a robust, rigid construction of the machine ensure a precise cut. The basic configuration of this machine includes a full stroke clamping cylinders addition , an infinitely adjustable belt speed . The '34 bandsaw moves a large drive and idler wheel which makes for a longest possible lifetime ! • fully automatic NC band saw for sawing thick-walled profiles and solid materials • robust constructed monoblock saw frame with hydraulic vertical motion and linear guide • Feed length in a train 500 mm • Cutting length and average number input via PLC (programmable logic controller ) of " SIEMENS " for 10 different programs • continuously adjustable belt speed 20 - 100 m / min • hydraulic-mechanical belt tension • automatic machine shutdown at band breaks • accurate position measurement of the slide on magnetic scale • Sensitive cutting pressure regulation function of the material properties • Eilvorlauf the saw frame with automatic saw feed in transition ( light sensor ) • automatic adjustment guide , synchronously with hydraulic clamping of the horizontal vise • tape guide with hard metal pads sheets and rolls • automatic belt break protection • Chip brush driven by impeller Optional Features Chip Conveyor Hydraulic Blade Tension Multiple Segments ILC Microspray Device
