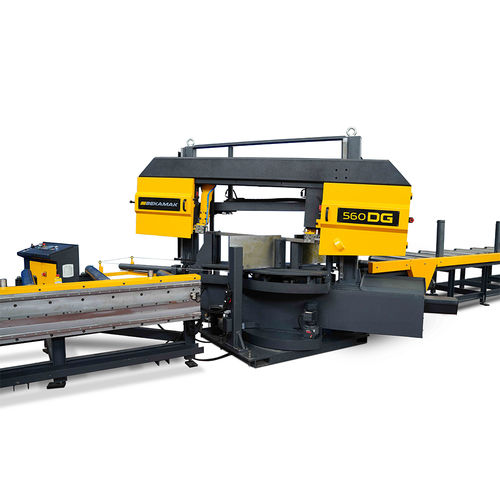

Band saw BMSY-560DG NC

miterfor steelfor aluminum

Capacity of the machine is 500/850 and projected for fast cuttings straight or with angle . Sensetivity of the machine lets cutting with percentage angles. BMSY 560 DG has automatic control system and open to future developments. Rollers on the table are designed for easy movement of the materials on machine. Hydraulic equipment on fixed and moveable guide arms controls cutting spped for a more smooh cut. Blade is under control mechanically switch system. Design of the machine and movement of the upper body and guide arms controlled by sensitive lineer guides supply the operator an easier use. Optional Features • Hydraulic Blade Tension • 3 Mt Material Roller Table • 3 Mt Motorized Roller Table • Hydraulic Top Clamping • ILC Microspray Device • Lazer Line Pointer • Chip Conveyor Standard Features • Heavy Duty Gearbox • Hydromechnic Blade Tension • Optical Height Adjustment • Saw Blade Brush • Sensitive Pressure • Synchronisation Moveable Arm/Vice • Inverter • Control Panel • Saw Blade 41 • 3 inclined Blade • Turn Table • Lineer Way • Security Switch • Proximity switch for sensing blade slippage • Hydraulic Vice
