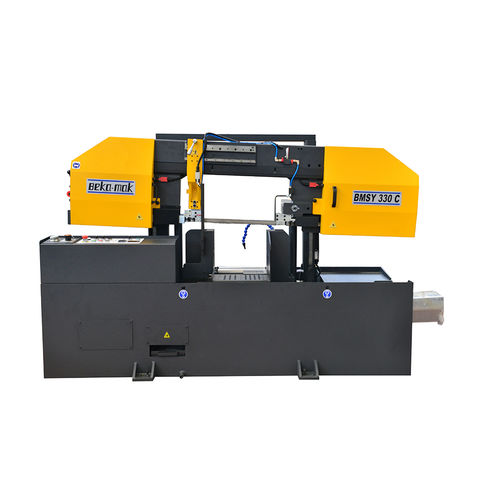

Band saw BMSY-330C

horizontalfor steelfor profiles

Fully automatic Linear Way for cutting solid stocks,tubes and profiles of steel , cast-iron light and nonferrous material for cutting at only 90°. Complete steel fabricated. The rear jaw contains of a number of hardened rollers driven through a worm and wheel by an electric motor.The front vice consist of a number of free running rollers.A limit switch assemebled on top the vice stops the machine when the block is exhausted. Once the work piece is clamped between the rollers no further clamping needed. The work is fed through the vice to the bar stop which contains a micro-switch controlling the bar feed motor. A piece counter controls the number of the cuts.The machines stop automatically at the blade breakage. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. Bi-Metal sawblade and 1,2 meters infeed roller table are supplied as standart. Optional Features • Chip Conveyor • 3 Mt Material Roller Table • Hydraulic Blade Tension • Microspray Device Standard Features • 2° Inclined Blade • Saw Blade 34 • Moveable Arm/Vice • Inverter • Security Switch • Saw Blade Brash • Hydromechnic Blade Tension • Lineer Way • Metarial Limit Shaft • Hidrolik Mengene • Control Panel • Mechanic Top Clamping • Optical Height Adjustment • Heavy Duty Gearbox • Pressure Adjustment • Coolant Pump • 1,2 mt Roller Table
