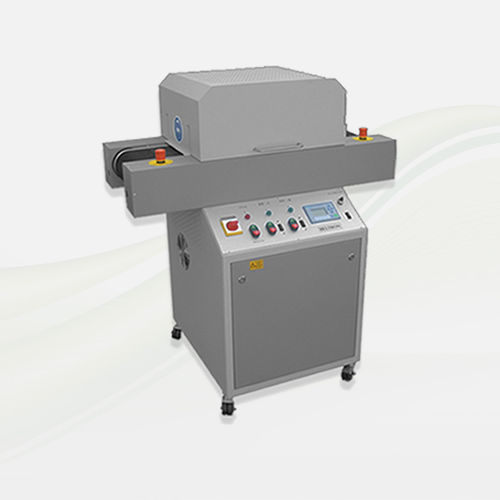

UV dryer BE 20

continuouslaboratorycooler

Application:
For drying and polymerisation of UV-curable coatings, inks, dyes and adhesives on printed circuit boards, laminated materials, plastics, paper, glass, metals and other substrates in continuous processing. Suited for laboratory use and small-series production. Standard lamp output 120 W/cm (other outputs available on request).

Design:
PTFE-coated conveyor belt with maintenance-free, stepless belt drive adjustable from 0.5–12 m/min (other ranges on request). Belt width 220 mm. 1 or 2 UV medium-pressure lamps. Aluminium faceted reflectors or optional selective heat-reducing filters. Entire radiant emitter unit height-adjustable. Castors or fixed feet. Clear passage height adjustable from 20 to 100 mm. Working height adjustable to SMEMA standard (fixed feet: approx. 900–950 mm). Optional exhaust/cooling fan.

Details:

• Conveyor belt
• Light source
• PLC control (optional)
• Compact control (standard)

Conveyor belt options:

• PTFE-coated (Teflon) or metal belt

Light source:

• 1 or 2 UV medium-pressure lamps, height-adjustable

Control — PLC (optional):

• Touchscreen with colour display and clear status indications
• Online UV power meter
• Detailed help system
• Password protection for process data
• User access levels
• Plain-text error messages with history
• Stepless process control

Control — Compact (standard):

• System status display
• Digital belt speed indicator
• Error messages in plain text
• Standby function

Uses / Industries:

• Printing industry
• Electronics industry
• Plastics industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Engineering

Advantages:

• Manufacturer experience: 60 years "Made in Germany"
• Innovative UV technology for uniform curing
• Very short curing times
• Energy-efficient system design
• Immediate downstream processing possible
• High scratch resistance and glossy results
• Durable finish with increased chemical resistance

Technical specifications:

• Lamp output: standard 120 W/cm (other outputs on request)
• Bulb power range: 80–120 W/cm
• Number of lamps: 1 or 2 UV medium-pressure lamps
• Bulb filling: Hg (mercury), Fe (iron) or Ga (gallium)
• Belt type: PTFE-coated (Teflon) or metal
• Belt width: 220 mm
• Belt speed: steplessly adjustable, approx. 0.5–12 m/min (on request)
• Clear passage height: adjustable 20–100 mm
• Working height (with fixed feet): adjustable approx. 900–950 mm (SMEMA compatible)
• Radiant emitter: height-adjustable; aluminium faceted reflectors or selective heat-reducing filters on request
• Control: Compact control with LCD (standard) — displays UV setpoint, operating hours, lamp voltage; monitors ignition, lamp fuses, run-on, overtemperature, exhaust air, frequency converter. PLC control optional with advanced features.
• Supply voltage: 400 V / 50 Hz / 3~ (other voltages on request)
• Certification: CE
