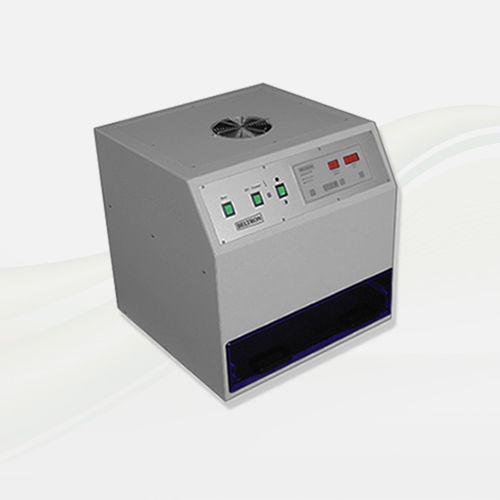

UV curing unit Beltrostat

for coatingdryingbench-top

Application: The Beltrostat UV dryer is used for uniform drying and curing of UV paints and varnishes and is particularly suitable for small-series production, repair work and laboratory use. The device can be supplied with a timer with function keys or with a BELTROMAT control computer.

Design: Stationary UV dryer with drawer for small-series production, repairs and laboratory operation. Optimised airflow prevents device pre-heating even during extended drying cycles. Uniform, optimised illumination. Safety lock prevents accidental opening of the drying chamber during curing. Timer and function-key control. Low power consumption through 50% power reduction mode. Electric shutter—no compressed air required.

Scope of Supply:

• Stationary UV dryer with drawer
• Unit dimensions: 570 x 570 x 460 mm (W x D x H)
• Drawer dimensions: 495 x 540 x 90 mm
• Drawer extension: > 500 mm
• 3 m power cable

Optional:

• BELTROMAT control computer

Control:

• Beltromat 8100 with UV photocell to display UV power in % and automatic compensation of exposure times (lamp ageing)

Cooling system: standard

Drawer:

• Drawer 495 x 540 x 90 mm (W x H x D)
• Drawer extension > 500 mm
• Irradiated area approximately 210 x 290 mm (DIN A4)

Uses:

• electronic industry
• textile industry
• packaging industry

Advantages:

• 60 years of quality "Made in Germany"
• Innovative UV technology
• Complete, uniform UV curing
• Very short curing times
• Sustainable energy-saving systems
• Immediate further processing possible
• High scratch resistance and gloss
• Durable with increased chemical resistance

Technical specifications:

• Fuses (F1/F2): 8 A slow-blow
• Supply voltage: 230 V / 50 Hz
• Emitter doping: Hg (mercury)
• Emitter power: 800 W
• Maximum connection power: approx. 850 W
• Irradiation surface area: approx. 210 x 290 mm (DIN A4)
• Dimensions: 570 x 570 x 460 mm (W x D x H)
• CE mark
