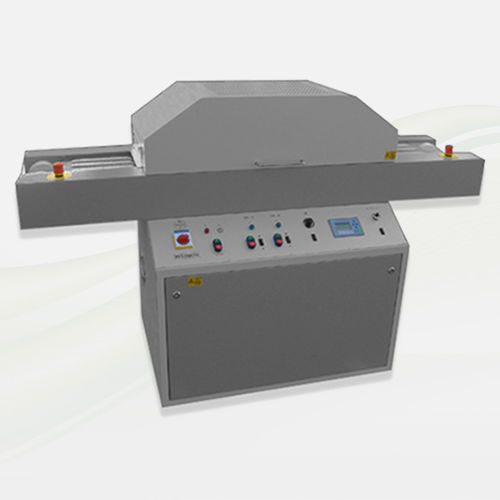

UV curing system BE 35 BETC

with belt conveyorair-cooledsurface

Application:
For UV curing of conformal coatings and solvent-free thick film lacquers on PCBs and other 3D objects such as TWIN CURE® (Peters Lackwerke), Dymax products and other UV-curable materials.

Design:
PFT conveyor belt with suction/cooling system; maximum feed width 350 mm (working width typically up to 300 mm); working height adjustable between 25 and 95 mm. Belt speed adjustable in several ranges (examples: 2–20 m/min, 0.5–12 m/min, 1.0–10.0 m/min; ratio up to 1:10). Stepless lamp power control 30–100% for optimal UV dosing. Easy and fast lamp replacement. Special high-gloss reflector for optimized UV focusing and undercut curing. Integrated electronic control with digital belt speed display. Service- and maintenance-friendly design. Exhaust fan with connection for exhaust piping. Special design for curing of thick film lacquers.

Compact control / PLC:
Compact control provides display of UV set value, operating hours and lamp current. The PLC monitors and controls lamp ignition, lamp fuses, idle run, over-temperature protection, exhaust air and frequency converter.

PLC control (optional) - features:

• Touchscreen with color display and clear system status
• Online UV power meter
• Detailed help system
• Password protection of process data
• User levels
• Plain-text error messages with history
• Stepless control

Compact control (standard) - features:

• Display of system status
• Digital belt speed indicator
• Error messages in plain text
• Standby function

Options / On request:

• Selective filters
• Quartz glass for further reduction of product temperature
• SPS/PLC computer control

Details / Advantages:

• Beltron UV dryer Slimsize
• Cooling system (standard)
• Conveyor belts: Teflon or metal
• Compact control (standard); PLC control available as option
• Special high-gloss reflector which also undercuts components
• Quick-start UV lamp; easy and fast lamp replacement
• UV energy 80–120 W/cm
• Beltron benefits: 60 years "Made in Germany" experience, even UV curing, short curing times, energy-efficient systems, immediate further processing, high scratch resistance and increased chemical resistance

Applications / Uses:

• Printing industry
• Electronic industry
• Plastics industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Engineering

Technical specifications:

• Model: BE 35 BETC
• PFT conveyor belt with suction/cooling system
• Max. belt width: 350 mm
• Working width: typically up to 300 mm
• Working height adjustable: 25–95 mm
• Substrate height: approx. 100 mm (other on request)
• Belt speed: multiple ranges (examples 2–20 m/min; 0.5–12 m/min; 1.0–10.0 m/min), stepless adjustment, up to 1:10 ratio
• Stepless lamp power control: 30–100%
• UV energy: 80–120 W/cm
• Special reflector for optimized UV focus (high-gloss; undercuts components)
• Quick-start UV lamp; easy lamp replacement
• Integrated electronic control with digital belt speed indication
• Exhaust fan with connection for exhaust pipes
• Electrical supply example: 400 V / 50 Hz / 3~
• CE marking
