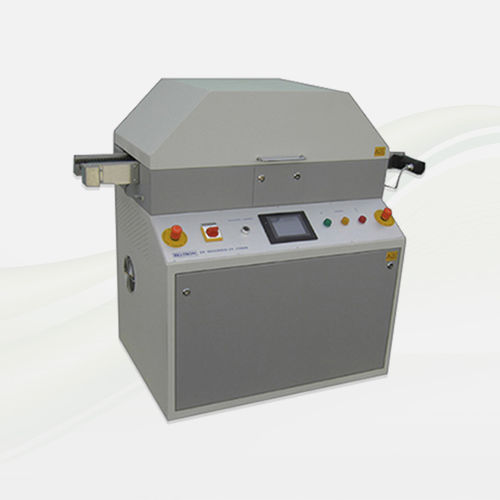

UV dryer

continuousfor printed circuit boardcuring

Application: UV drying for all UV-reactive materials such as thick-film protective lacquers, paints, adhesives, casting resins and UV lacquers. Suitable for fully automatic inline operation. Workpieces are transported on two chain conveyors with edge guidance.

Design: Infinitely variable power control of the UV emitter in the range 30–100% allows precise matching of UV output to belt speed and required UV dose. Chain transport with edge guidance and pin support for PCBs or carriers.

Advantages:

• Fast horizontal UV curing in throughflow operation
• Controlled UV dose delivery via stepless power regulation
• Flexible adaptation to different process requirements with program storage in the PLC

Details: Details Beltron UV dryer with edge conveyor:

• Two transport chains with edge guidance
• PLC control (optional)

Transport chains:

• Chain drive with pins
• Standard width adjustable up to 350 mm (wider on request)

PLC control (optional) - Main features:

• Touchscreen with colour display showing system status
• Online UV power meter
• Detailed help system
• Password protection for process data
• User levels
• Plain-text error messages with history
• Stepless control

Typical uses / Industries:

• Printing industry
• Electronics industry
• Plastics industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Engineering

Technical specifications:

• Reflector: special high-gloss reflector designed to irradiate also under components
• Quick-start UV lamps
• UV energy: 80 - 120 W/cm
• Belt speed: 1.0 - 10.0 m/min (others on request)
• Belt width: 300 mm
• Working width: max. 350 mm
• Substrate height: approx. 100 mm (others on request)
• Electrical supply: 400 V / 50 Hz / 3~
• CE mark
