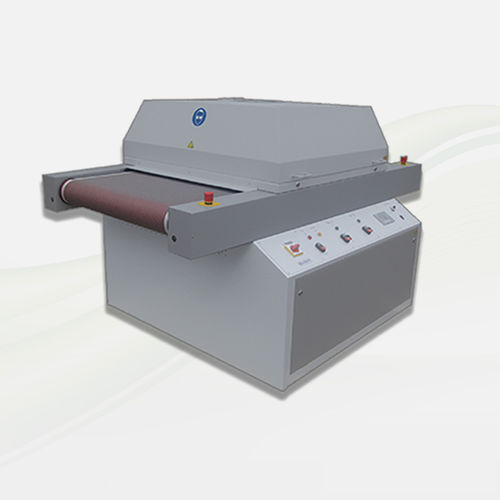

UV curing system

for coatingdryingin-line

Application
For drying and polymerization of UV screen inks, UV adhesives and for treatment of printed circuit boards, laminated materials, plastics, paper, glass, metal and other printed materials in a continuous production process. Type BE machines are available with working widths from 7 to 260 cm, lamp power from 80 to 120 W/cm and configurations of 1 to 3 lamps.

Design
Compact steel construction for space-efficient installation. Belt speed 0.5–12 m/min steplessly controllable (other ranges available). Electronic lamp cooling system and easy, fast lamp exchange. Aluminium lamp housings with UV bulbs up to 120 W/cm. Stepless power control 30–100% for precise UV dosing. Special reflectors for focused UV radiation. Service- and maintenance-friendly layout. Exhaust air system with connection for external ducting. Additional air cooling between lamps for temperature-sensitive products. Compact Control displays UV set value, operating hours and lamp current and monitors lamp ignition, lamp fuses, idle run, overtemperature, exhaust air and converter.

Optional equipment

• Selective filters
• Quartz glass panes for further reduction of product temperature
• PLC computer control with touchscreen (optional)

Details

• Cooling system
• Conveyor belt (Teflon or metal)
• PLC control (optional)
• Compact Control (standard)

Benefits

• Uniform UV curing
• Very short curing times
• Energy-saving operating modes
• Immediate further processing possible
• High scratch resistance and gloss
• Improved durability and chemical resistance

Industries

• Printing industry
• Electronics industry
• Plastics industry
• Building materials industry
• Textile industry
• Packaging industry
• Pharmaceutical industry
• Automotive industry
• Glass industry
• Mechanical engineering

Technical information
Transportation belt: Teflon or metal
Control: Conventional or PLC with touchscreen
Lamps: 1, 2 or 3 UV lamps
Lamp filling: Hg (Mercury), Fe (Iron) or Ga (Gallium)
Lamp power: 80 - 120 W/cm
Electrical supply: 400 V / 50 Hz / 3~
CE marking

Characteristics / technical specifications

• Machine types: BE (working widths available 7–260 cm)
• Number of lamps: 1, 2 or 3 (special configurations possible)
• Maximum lamp power: 80–120 W/cm
• Lamp fill types: Hg (Mercury), Fe (Iron), Ga (Gallium)
• Power control: stepless 30–100%
• Belt speed: 0.5–12 m/min steplessly controllable (other ranges possible)
• Cooling: electronic lamp cooling; additional air cooling between lamps; exhaust air system with duct connection
• Conveyor belt: Teflon or metal
• Controls: Compact Control (standard) with display of UV set value, operating hours and lamp current; PLC control with touchscreen (optional)
• Electrical supply: 400 V / 50 Hz / 3~
