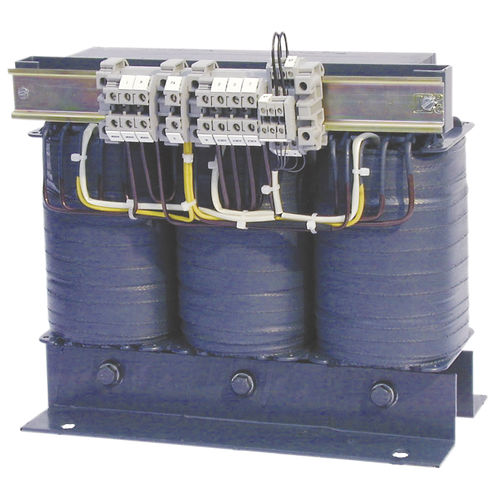

Isolation transformer DS0107 series

encapsulatedprotectionfor medical applications

Description
The DS0107 series isolating transformers provide galvanically isolated primary and secondary windings and include an electrostatic screen with an insulated terminal for equipotential bonding. They comply with IEC 61558-1 and IEC 61558-2-15 and meet requirements of IEC 60364-7-710 / DIN VDE 0100-710 for IT systems in medical locations. Mounting angles are insulated to allow isolated installations. Units are available for horizontal or vertical installation and are designed for dry locations; SK2 versions are fully encapsulated (protection class II).

Features

• Built-in temperature sensors acc. to DIN 44081 (120 °C)
• Electrostatic screen with brought-out insulated connection terminal for equipotential bonding
• Galvanically isolated primary and secondary windings
• Insulated mounting angles for isolated installation
• Installation: horizontal or vertical
• Corrosion protection: full resin impregnation
• Degree of protection: IP00 (open) or IP23 (with enclosure)
• Protection class: I (standard), II optional for SK2 encapsulated versions
• Reinforced insulation, classification ta40/B
• Connections: screw terminals
• Noise level < 35 dB(A) (no-load and nominal load)
• Vector group: Yyn 0

Variants — Ordering information, Dimensions, Weight
Type | A | B | C | D | E | F | G | Cu weight | Weight | Art. No.
DS0107/2000 | 300 mm | 200 mm | 270 mm | 240 mm | 160 mm | 130 mm | 11 mm | 16 kg | 34 kg | B924694
DS0107/3150 | 360 mm | 210 mm | 325 mm | 310 mm | 170 mm | 135 mm | 11 mm | 28 kg | 63 kg | B924106
DS0107/4000 | 360 mm | 225 mm | 325 mm | 310 mm | 185 mm | 150 mm | 11 mm | 29 kg | 70 kg | B924121
DS0107/5000 | 360 mm | 240 mm | 325 mm | 310 mm | 200 mm | 165 mm | 11 mm | 31 kg | 77 kg | B924112
DS0107/6300 | 420 mm | 230 mm | 370 mm | 370 mm | 200 mm | 160 mm | 11 mm | 48 kg | 97 kg | B924107
DS0107/8000 | 420 mm | 245 mm | 370 mm | 370 mm | 215 mm | 175 mm | 11 mm | 51 kg | 107 kg | B924628
DS0107/10000 | 420 mm | 260 mm | 370 mm | 370 mm | 230 mm | 190 mm | 11 mm | 59 kg | 130 kg | B924672
DS0107/2000K | 300 mm | (not specified) | 310 mm | 240 mm | 162 mm | 130 mm | 11 mm | 16 kg | 34 kg | B924687
DS0107/3150K | 360 mm | (not specified) | 360 mm | 310 mm | 170 mm | 135 mm | 11 mm | 28 kg | 63 kg | B924688
DS0107/4000K | 360 mm | (not specified) | 360 mm | 310 mm | 185 mm | 150 mm | 11 mm | 29 kg | 70 kg | B924689
DS0107/5000K | 360 mm | (not specified) | 360 mm | 310 mm | 200 mm | 165 mm | 11 mm | 31 kg | 77 kg | B924690
DS0107/6300K | 420 mm | (not specified) | 420 mm | 370 mm | 200 mm | 160 mm | 11 mm | 48 kg | 97 kg | B924691
DS0107/8000K | 420 mm | (not specified) | 420 mm | 370 mm | 215 mm | 175 mm | 11 mm | 51 kg | 107 kg | B924692
DS0107/10000K | 420 mm | (not specified) | 420 mm | 370 mm | 230 mm | 190 mm | 11 mm | 59 kg | 130 kg | B924693
DS0107/2000LG | 330 mm | 195 mm | 265 mm | 298 mm | (not specified) | 200 mm | 7 mm | 16 kg | 34 kg | B924695
DS0107/3150LG | 394 mm | 198 mm | 310 mm | 358 mm | (not specified) | 240 mm | 9 mm | 28 kg | 63 kg | B924658
DS0107/4000LG | 394 mm | 214 mm | 310 mm | 358 mm | (not specified) | 240 mm | 9 mm | 29 kg | 70 kg | B924659
DS0107/5000LG | 394 mm | 228 mm | 310 mm | 358 mm | (not specified) | 240 mm | 9 mm | 31 kg | 77 kg | B924660
DS0107/6300LG | 452 mm | 212 mm | 360 mm | 408 mm | (not specified) | 280 mm | 12 mm | 48 kg | 97 kg | B924661
DS0107/8000LG | 452 mm | 227 mm | 360 mm | 408 mm | (not specified) | 280 mm | 12 mm | 51 kg | 107 kg | B924662
DS0107/10000LG | 452 mm | 250 mm | 360 mm | 408 mm | (not specified) | 280 mm | 12 mm | 59 kg | 130 kg | B924679
DS0107/2000SK2 | 410 mm | 190 mm | 400 mm | 380 mm | 330 mm | 125 mm | 11 mm | 16 kg | 49 kg | B924696
DS0107/3150SK2 | 520 mm | 190 mm | 450 mm | 490 mm | 390 mm | 135 mm | 11 mm | 28 kg | 75 kg | B924122
DS0107/4000SK2 | 520 mm | 190 mm | 450 mm | 490 mm | 390 mm | 135 mm | 11 mm | 29 kg | 80 kg | B924123
DS0107/5000SK2 | 520 mm | 200 mm | 450 mm | 490 mm | 390 mm | 150 mm | 11 mm | 31 kg | 86 kg | B924124
DS0107/6300SK2 | 520 mm | 200 mm | 500 mm | 490 mm | 450 mm | 150 mm | 11 mm | 48 kg | 107 kg | B924125
DS0107/8000SK2 | 520 mm | 215 mm | 500 mm | 490 mm | 450 mm | 175 mm | 11 mm | 51 kg | 130 kg | B924126
DS0107/10000SK2 | 520 mm | 230 mm | 500 mm | 490 mm | 450 mm | 175 mm | 11 mm | 59 kg | 155 kg | B924678

Technical specifications

• Standards: IEC 61558-1, IEC 61558-2-15; compliance with IEC 60364-7-710 / DIN VDE 0100-710 for IT systems in medical locations
• Galvanically isolated primary and secondary windings
• Electrostatic screen between primary and secondary with insulated terminal for equipotential bonding
• Insulated fixing/mounting angles to ensure isolated installation
• Installation: horizontal or vertical
• Corrosion protection: complete resin impregnation
• Intended for dry locations
• SK2 series: completely encapsulated option (protection class II)
• Built-in temperature sensor acc. to DIN 44081 (120 °C)
• Degree of protection: IP00 (open) or IP23 (with enclosure)
• Protection class: I (standard), II optional (encapsulated)
• Insulation: reinforced insulation, classification ta40/B
• Connections: screw terminals
• Noise level: < 35 dB(A) (no-load and nominal load)
• Vector group: Yyn 0
