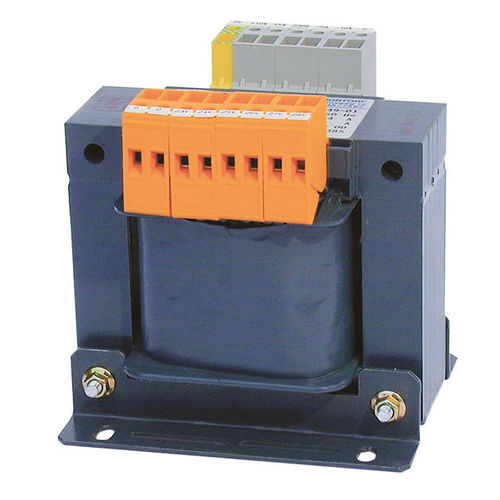

Isolation transformer ESL0107 series dryfor lightingsingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- dry
- Applications
- for lighting
- Electrical characteristics
- single-phase
- Norms
- IEC, VDE
- Other characteristics
- protection, secondary, primary, laminated
- Primary voltage
230 V
- Secondary voltage
Max.: 28 V
Min.: 23 V
- Primary current
Max.: 4.6 A
Min.: 0.6 A
- Secondary current
Max.: 35.7 A
Min.: 4.3 A
- Frequency
Max.: 60 Hz
Min.: 50 Hz
Description
Overview
Applications
The ESL0107 series is intended for supplying operating-theatre lights in Group 2 rooms. Tapping points on the primary and secondary permit precise voltage adjustment to meet luminaire supply requirements while galvanic isolation and reinforced insulation support safety in medical installations. The electrostatic screen reduces electrical interference; its lead is brought out to an insulated terminal for equipotential connection.
Key features
Variants
Type | Art. No.
ESL0107/120 | B924632
ESL0107/160 | B924633
ESL0107/280 | B924634
ESL0107/400 | B924637
ESL0107/630 | B924638
ESL0107/1000 | B924639
Technical specifications
- Single-phase isolating transformers for operating-theatre luminaires
- Fine-step voltage adaptation via tapping points on primary and secondary sides
- Electrostatic screen with lead-out for connection to the equipotential bonding
- Galvanically isolated windings and reinforced insulation compliant with IEC 61558-2-6 / DIN EN 61558-2-6
- Insulated mounting brackets and complete resin impregnation for corrosion protection
- Designed for installation in dry locations; open construction (IP 00)
Applications
The ESL0107 series is intended for supplying operating-theatre lights in Group 2 rooms. Tapping points on the primary and secondary permit precise voltage adjustment to meet luminaire supply requirements while galvanic isolation and reinforced insulation support safety in medical installations. The electrostatic screen reduces electrical interference; its lead is brought out to an insulated terminal for equipotential connection.
Key features
- Screen winding lead-out for external equipotential connection
- Insulated mounting angles for isolated installation
- Degree of protection: IP 00 (open construction)
- Reinforced insulation; insulation classification: ta 40/E
- Connections: screw terminals
- Vector group: IiO
- Complete resin impregnation for corrosion protection
- Fine-step tapping points on primary and secondary
Variants
Type | Art. No.
ESL0107/120 | B924632
ESL0107/160 | B924633
ESL0107/280 | B924634
ESL0107/400 | B924637
ESL0107/630 | B924638
ESL0107/1000 | B924639
Technical specifications
- Standards: IEC 61558-2-6 / DIN EN 61558-2-6 (VDE 0570-1)
- Single-phase isolating transformer with galvanically isolated windings
- Electrostatic screen between primary and secondary with insulated lead-out
- Fine-step voltage adaptation on primary and secondary
- Insulated fixing angles for isolated installation
- Complete resin impregnation (corrosion protection)
- Degree of protection: IP 00
- Connection type: screw terminals
- Insulation classification: ta 40/E
- Vector group: IiO
