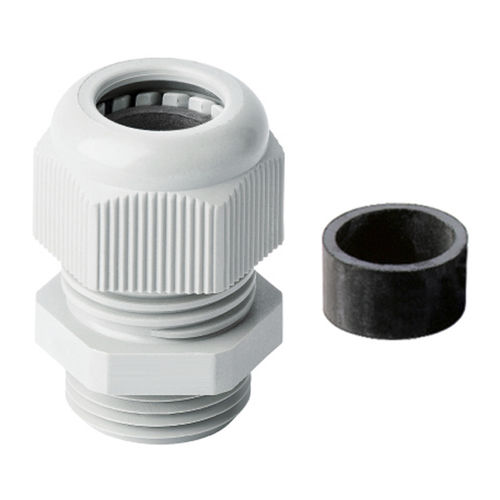

Polyamide cable gland JCR05IP68self-extinguishingthreaded
Add to favorites
Compare this product
Characteristics
- Material
- polyamide
- Protection level
- IP68, self-extinguishing
- Other characteristics
- threaded
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 32 mm
(1.26 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Perfect cable gland, PG thread
• Material
Body: PA6 (Polyamide)
Sealing ring: CR/NBR (Nitrile chloroprene)
O-Ring: NBR (Nitrile rubber)
• Colour
Grey RAL 7035
Grey RAL 7001
Black RAL 9005
• Protection grade: IP68 - 5 bar
• Self-Extinguishing: UL 94 V-2
• Operating temperature: -20°C ÷ 100°C
• UL/CSA-file: E140310
• Standard test: UL 514B
