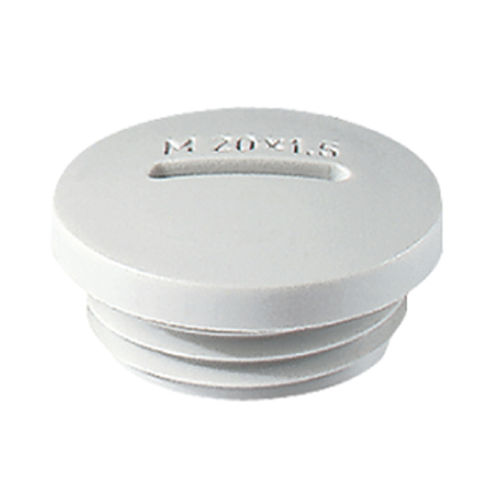

Circular plug JCT07
threadedpolyamideprotection

Circular plug - JCT07 - Berardi Bullonerie srl - threaded / polyamide / protection
Circular plug - JCT07 - Berardi Bullonerie srl - threaded / polyamide / protection
Circular plug - JCT07 - Berardi Bullonerie srl - threaded / polyamide / protection - image - 2
Add to favorites
Compare this product

Characteristics

Form
circular
Type
threaded
Material
polyamide
Function
protection
Other characteristics
with seal, protective
Diameter

Max.: 70 mm
(2.756 in)

Min.: 15 mm
(0.591 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Threaded plug, metric thread IP68 • Material Body: PA6 (Polyamide) Gasket: CR (Chloroprene) • Colour Grey RAL 7035 Grey RAL 7001 Black RAL 9005 • Protection grade: IP68 - 5 bar • Self-Extinguishing: UL 94 V-2 • Operating temperature: -40°C ÷ 100°C • UL/CSA-file: E140310 • Standard test: UL 514B

Catalogs

No catalogs are available for this product.

See all of Berardi Bullonerie srl‘s catalogs
