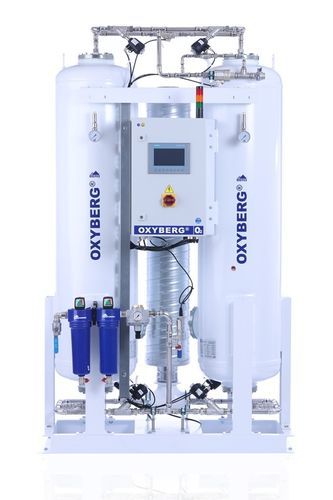

High-concentration oxygen generator OXYBERG® 500

for water treatmentmedicalfor aquaculture

Overview
Generate oxygen on site with selectable purity from 90–95% and capacities from 1.5 to 197.4 Nm³/h. OXYBERG® PSA oxygen generators separate oxygen from compressed ambient air using Pressure Swing Adsorption. BERG GaseTech supplies the generator technology and BERG Kompressoren supplies complete engineered packages including compressed-air treatment, buffer storage, control and monitoring, with optional skid or container integration.

How PSA oxygen generation works

• Compressed-air preparation — Ambient air is compressed, dried and filtered to protect the adsorbent beds.
• Nitrogen adsorption — A CWK zeolite molecular sieve adsorbs nitrogen preferentially under pressure.
• Oxygen production — Oxygen-enriched product gas is collected and supplied to the process.
• Automatic regeneration — Alternating vessels regenerate while the controller maintains continuous production.

Model matrix (OXYBERG® PSA Models — values = O₂ output / compressed-air demand, both in Nm³/h; operating pressure 5–10 bar)
OXYBERG® 500 — 90%: O₂ 2.1 / Comp. air 23.1 ; 92%: O₂ 1.9 / 20.9 ; 93%: O₂ 1.7 / 18.7 ; 94%: O₂ 1.6 / 17.6 ; 95%: O₂ 1.5 / 16.5
OXYBERG® 600 — 90%: 2.9 / 31.9 ; 92%: 2.6 / 28.6 ; 93%: 2.4 / 26.4 ; 94%: 2.3 / 25.3 ; 95%: 2.2 / 24.2
OXYBERG® 700 — 90%: 4.9 / 53.9 ; 92%: 4.5 / 49.5 ; 93%: 4.2 / 46.2 ; 94%: 3.9 / 42.9 ; 95%: 3.8 / 41.8
OXYBERG® 800 — 90%: 6.1 / 67.1 ; 92%: 5.7 / 62.7 ; 93%: 5.5 / 60.5 ; 94%: 5.2 / 57.2 ; 95%: 4.9 / 53.9
OXYBERG® 900 — 90%: 9.2 / 101.2 ; 92%: 8.5 / 93.5 ; 93%: 8.2 / 90.2 ; 94%: 7.7 / 84.7 ; 95%: 7.3 / 80.3
OXYBERG® 1000 — 90%: 12.4 / 136.4 ; 92%: 11.6 / 127.6 ; 93%: 11.1 / 122.1 ; 94%: 10.5 / 115.5 ; 95%: 10.1 / 111.1
OXYBERG® 1100 — 90%: 13.8 / 151.8 ; 92%: 13.3 / 146.3 ; 93%: 12.8 / 140.8 ; 94%: 12.4 / 136.4 ; 95%: 12.1 / 133.1
OXYBERG® 1200 — 90%: 18.9 / 207.9 ; 92%: 18.1 / 199.1 ; 93%: 17.4 / 191.4 ; 94%: 16.8 / 184.8 ; 95%: 15.9 / 174.9
OXYBERG® 1300 — 90%: 24.8 / 272.8 ; 92%: 23.3 / 256.3 ; 93%: 22.1 / 243.1 ; 94%: 21.1 / 232.1 ; 95%: 20.3 / 223.3
OXYBERG® 1400 — 90%: 33.8 / 371.8 ; 92%: 33.2 / 365.2 ; 93%: 31.4 / 345.4 ; 94%: 30.1 / 331.1 ; 95%: 28.8 / 316.8
OXYBERG® 1500 — 90%: 44.6 / 490.6 ; 92%: 43.1 / 474.1 ; 93%: 41.6 / 457.6 ; 94%: 40.5 / 445.5 ; 95%: 39.1 / 430.1
OXYBERG® 1600 — 90%: 55.3 / 608.3 ; 92%: 53.2 / 585.2 ; 93%: 51.3 / 564.3 ; 94%: 49.6 / 545.6 ; 95%: 48.2 / 530.2
OXYBERG® 1700 — 90%: 65.8 / 723.8 ; 92%: 64.4 / 708.4 ; 93%: 62.1 / 683.1 ; 94%: 61.4 / 675.4 ; 95%: 59.8 / 657.8
OXYBERG® 1800 — 90%: 89.2 / 981.2 ; 92%: 86.2 / 948.2 ; 93%: 83.2 / 915.2 ; 94%: 81.0 / 891.0 ; 95%: 78.2 / 860.2
OXYBERG® 1900 — 90%: 110.6 / 1,216.6 ; 92%: 106.4 / 1,170.4 ; 93%: 102.6 / 1,128.6 ; 94%: 99.2 / 1,091.2 ; 95%: 96.4 / 1,060.4
OXYBERG® 2000 — 90%: 131.6 / 1,447.6 ; 92%: 128.8 / 1,416.8 ; 93%: 124.2 / 1,366.2 ; 94%: 122.8 / 1,350.8 ; 95%: 119.6 / 1,315.6
OXYBERG® 3000 — 90%: 165.9 / 1,824.9 ; 92%: 159.6 / 1,755.6 ; 93%: 153.9 / 1,692.9 ; 94%: 148.8 / 1,636.8 ; 95%: 144.6 / 1,590.6
OXYBERG® 4000 — 90%: 197.4 / 2,171.4 ; 92%: 193.2 / 2,125.2 ; 93%: 186.3 / 2,049.3 ; 94%: 184.2 / 2,026.2 ; 95%: 179.4 / 1,973.4

Notes
Approx. 11 Nm³ of compressed air is required to generate 1 Nm³ of oxygen (ratio broadly consistent across 90–95% purity). Matrix values are for preliminary selection; final sizing must consider ambient conditions, altitude and operating parameters.

Design features & complete system advantages

• Siemens PLC & HMI control: automatic PSA control with clear operator interface.
• German CWK zeolite adsorbent: molecular sieve selected for reliable oxygen separation.
• Advanced monitoring as standard: continuous monitoring of oxygen purity, product pressure and inlet-air pressure dew point.
• Designed for 24/7 operation: robust design for continuous-duty oxygen generation.
• High-quality German components for reliability and serviceability.
• 2-year full functional warranty.

System scope and optional functions

• Complete engineered package options: compressor, air treatment, receivers, monitoring and downstream equipment (booster, cylinder filling).
• Correctly sized buffer receivers for air and oxygen storage according to demand profile.
• Oxygen quality monitoring & alarms integrated per system configuration.
• Skid or container integration for packaged installation options.
• Commissioning, documentation and technical support available according to project scope.

Applications

• Medical oxygen projects (project-specific configurations for hospitals and healthcare facilities, subject to approvals and complete-system validation).
• Water and wastewater treatment (oxygen enrichment for biological treatment, oxidation and ozone-feed processes).
• Aquaculture (controlled oxygen supply for dissolved-oxygen management).
• Glass and combustion (oxygen enrichment for melting, heating and oxy-fuel processes).
• Mining and leaching (process-specific oxidation and dissolved-oxygen control).
• Biogas desulphurisation (controlled micro-oxygen dosing to support biological H₂S reduction).

Technical specifications

• Product line: OXYBERG® PSA oxygen generators (series).
• Oxygen purity range: 90% – 95% (selectable).
• Capacity range: 1.5 to 197.4 Nm³/h (model-dependent).
• Operating pressure: typical 5–10 bar.
• Compressed-air demand: approx. 11 Nm³ air per 1 Nm³ O₂ (model- and purity-dependent).
• Control & monitoring: Siemens PLC & HMI; continuous monitoring of oxygen purity, product pressure and inlet-air dew point.
• Adsorbent: German CWK zeolite molecular sieve.
• Duty: designed for 24/7 continuous operation.
• Warranty: 2-year full functional warranty.
• Integration options: packaged skid or container, compressed-air generation & treatment, buffer receivers, booster and cylinder-filling solutions.
