Steel thickness gauge CS 0495

for carbon steelcoatingportable

Product information

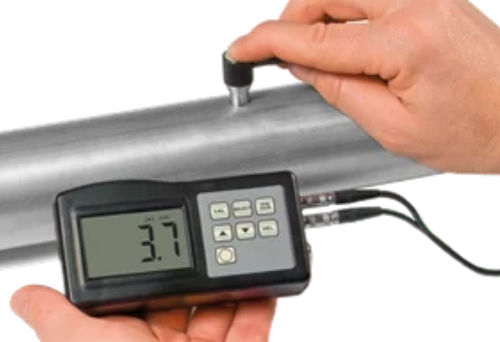

CS 0495 - Thickness meter. Digital wall/coating thickness meter CS 0495. Compact, lightweight and portable device designed to deliver repeatable thickness measurements on a range of materials. User-friendly interface and battery operation make it suitable for field inspections and workshop use. Read the operating instructions carefully before use and keep the manual accessible.

Features

• Measuring range 1.0–200 mm on 45# steel
• Compact and lightweight for portable inspections
• Simple operation with clear 4-digit LCD
• Battery powered for mobile use
• Suitable for industrial quality control and maintenance checks

Technical data
Display: 4-digit, 10 mm LCD
Measuring range: 1.0–200 mm (on 45# steel)
Resolution: 0.1 mm / 0.001 inch
Accuracy: ±(0.5 % n + 0.1)
Sound velocity: 500–9000 m/s
Power supply: 4 × 1.5 V AAA (UM-4) batteries
Operating conditions: 0–50 °C; humidity <80 %
Dimensions: 120 × 62 × 30 mm (4.7 × 2.4 × 1.2 inch)
Weight: approx. 164 g (without batteries)

Usage notes
Ensure correct coupling between the probe and the measured surface and select the appropriate sound velocity for the material. Allow the device to stabilise at operating temperature and consult the manual for calibration and battery replacement instructions.

Specifications

• Model: CS 0495
• Measuring range: 1.0–200 mm (on 45# steel)
• Resolution: 0.1 mm / 0.001 inch
• Accuracy: ±(0.5 % n + 0.1)
• Sound velocity range: 500–9000 m/s
• Power supply: 4 × 1.5 V AAA (UM-4)
• Operating temperature: 0–50 °C
• Dimensions: 120 × 62 × 30 mm
• Weight: approx. 164 g (without batteries)
• Product number: 05600495
