Gas airborne particle counter PC 400

nitrogenCO2oxygen

Product information
The highly precise optical particle counter PC 400 measures particles from 0.1 µm and is suitable for monitoring compressed air quality class 1 (ISO 8573-1). It continuously monitors filtration elements installed in the compressed air line and detects filter breaches immediately. The compressed air flow through the particle counter is automatically supervised to ensure representative sampling.

Product / Order No.
PC 400 particle counter up to 0.1 µm for compressed air and gases, incl. pressure reducer and calibration certificate in a service case | 0699 0042
Connection cable to portable devices, ODU / M12, 5 m | 0553 1503
Chart recorder DS 500 mobile, 4 sensor inputs | 0500 5012
CS Basic - data evaluation in graphic and table form - readout of the measured data via USB or Ethernet. License for 2 working places | 0554 8040

Advantages at a glance

• Optical laser particle counter for compressed air and technical gases with detection from 0.1 µm
• High-precision optics for smallest-particle detection, suitable for monitoring compressed air class 1 (ISO 8573-1)
• Sampling flow 28.3 l/min (1 cfm) — approx. 10× higher than many market counters (typically 2.83 l/min) for improved counting accuracy of fine particles
• Digital data transfer (Modbus-RTU) to DS 400 / DS 500 chart recorders; up to 3 measurement channels can be transferred simultaneously
• Included class 1 filter usable for on-site calibration and rapid detection/exclusion of optics contamination

Mobile solution in combination with DS 500 mobile

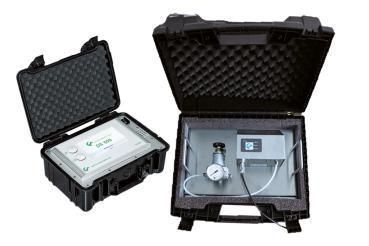

• PC 400 particle counter up to 0.1 µm for compressed air and gases, incl. pressure reducer, in a service case
• Connection cable for third-party sensors to portable devices, ODU / open ends, 5 m
• Chart recorder DS 500 mobile, 4 sensor inputs
• CS Soft Basic - data evaluation in graphic and table form - readout via USB or Ethernet
• Alternative: PC 400 version with detection from 0.3 µm

Technical specifications

• Measured medium: Compressed air (free from aggressive/corrosive/toxic/flammable/oxidising components) and gases such as N2, O2, CO2 (other gases on request)
• Field of application: Compressed air after filtration; gases/pure gases also without filtration
• Parameter: Number of particles per m³ (referenced to expanded air: 20 °C, 1000 hPa)
• Size channels (PC 400 0.1 µm): 0.1…0.5 µm, 0.5…1.0 µm, 1.0…5.0 µm (counts per m³)
• Size channels (PC 400 0.3 µm): 0.3…0.5 µm, 0.5…1.0 µm, 1.0…5.0 µm (counts per m³)
• Operating pressure: Max. input pressure on the pressure reducer: 40 bar
• Humidity of measured gas: <= 90% rel. humidity; pressure dew point max. 10 °C; non-condensable humidity
• Ambient temperature: 5...40 °C
• Temperature of measured medium: 0...70 °C
• Compressed air connection: 6 mm PTFE hose incl. quick coupling
• Flow rate: 28.3 l/min (1 cfm)
• Interface: RS 485 (Modbus-RTU)
• Light source: Laser diode
• Power supply: 24 VDC, 300 mA
• Dimensions: 150 x 200 x 300 mm
• Weight: 8 kg
• Housing: Stainless steel
