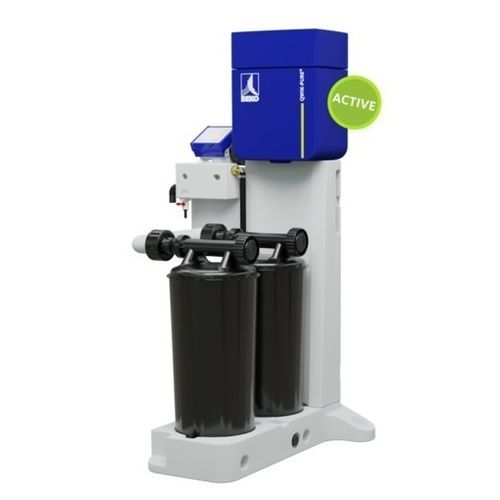

Water separator QWIK-PURE® 30

onlineautomatic

Product information
QWIK-PURE® — unique process, functional and future-proof
The QWIK-PURE® 30 is an active oil-water separator designed for treatment of oily compressor condensate. Its intelligent operating principle and integrated control system provide continuous display of remaining cartridge capacity, guided cartridge change via local WLAN and fail-safe behaviour in case of power loss (operates as a gravity separator). The unit ensures predictable maintenance cycles and transparent operation for industrial installations.

Technical data (summary)
Operating mode: active
Maximum condensate flow: 38 l/h
Condensate inlet connections: 3 x G1/2" (external) | 1 x G1" (external) | hose nozzle
Condensate drain connection: 1 x 23 mm (0.91 in), external, hose nozzle
Media: compressor condensate, oily
Maximum oil concentration at condensate drain: 20 mg/l
Maximum operating pressure at condensate inlet: 16 bar(g)
Operating temperature (fluids & environment): +5 … +50 °C
Relative humidity (environment): ≤10 … 80 %, without condensation
Weight: 31 kg
Number of replacement cartridges: 2

Control unit FRC — technical data
Compressed air operating pressure: 3 … 15 bar(g)
Compressed air cleanliness class: 2:4:2
Compressed air connection: 8 mm (0.31 in), external, hose nozzle
Operating voltage: 90 … 264 VAC / 24 VDC
Frequency range: 50 … 60 Hz
Power consumption: 10 VA
Protection class: IP54

Additional information

• Integrated control with permanent indication of remaining cartridge capacity and guided replacement procedure.
• Quick, clean cartridge change; sealed cartridges reduce operator exposure and environmental risk.
• Fail-safe mode: maintains safe separation as a gravity separator during power loss.
• Modular design for capacity extension; options and accessories available.

Characteristics / Technical specifications

• Manufacturer: BEKO Technologies GmbH
• Product number (SKU): 4055895
• Model: QWIK-PURE® 30
• Type: active oil-water separator with intelligent control and cartridge monitoring
• Max condensate flow: 38 l/h
• Max oil concentration after treatment: ≤ 20 mg/l
• Inlet connections: 3 x G1/2" (external) + 1 x G1" (external)
• Outlet connection: 1 x 23 mm (0.91 in), external, hose nozzle
• Max inlet pressure: 16 bar(g)
• Operating temperature range: +5 … +50 °C
• Relative humidity: ≤10 … 80 % (without condensation)
• Weight: 31 kg
• Replacement cartridges: 2
• Control unit FRC: compressed air pressure 3 … 15 bar(g); cleanliness class 2:4:2; compressed air connection 8 mm; operating voltage 90 … 264 VAC / 24 VDC; power 10 VA; protection class IP54
