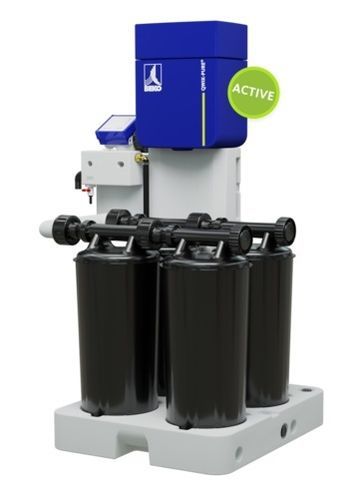

Liquid/liquid separator QWIK-PURE® 60

coalescingfor air compressorswith filter

Overview
QWIK-PURE® Extremely flexible and future‑proof. The integrated Modbus interface enables integration into higher‑level monitoring and control systems and provides additional longevity through IIOT capabilities. The modular concept allows the number of cartridges to be flexibly adapted to individual requirements, with up to 6 cartridges per system. This ensures optimal condensate treatment for all applications with a cartridge change time of less than 10 minutes, supported by an optimized guided service flow for a clean cartridge replacement.

Main features

• Active oil–water separation process (QWIK-PURE®).
• Integrated Modbus interface and IIOT capabilities for high‑level integration and monitoring.
• Modular concept: configurable number of cartridges (up to 6 per system).
• Fast cartridge change (< 10 minutes) with guided service flow for clean and safe operation.
• Hermetically sealed cartridges for hygiene and operator safety.

Technical data (extract)
Mode: active
Maximum condensate flow: 76 l/h
Condensation loop connector: 3 x G1/2" ext. | 1 x G1" ext. | hose nozzle
Condensate drain connector: 1 x 23 mm (0.91 in), ext., hose nozzle
Media: compressor condensate, oily
Maximum oil concentration at condensate purge: 20 mg/l
Maximum operating pressure at condensation inlet: 16 bar(ü)
Minimum / maximum operating temperature, fluids and environment: +5 ... +50 °C
Ambient relative humidity: ≤10 ... 80 %, without condensation
Weight: 45 Kg
Required number of replacement cartridges: 4

FRC control unit technical specifications
Minimum / maximum operating pressure, compressed air: 3 ... 15 bar(g)
Compressed air purity class: 2:4:2
Compressed air connector: 8 mm (0.31 in), ext., hose nozzle
Supply voltage: 90 ... 264 VAC / 24 VDC
Frequency range: 50 ... 60 Hz
Power consumption: 10 VA
Degree of protection: IP54

Technical characteristics / specifications

• Model: QWIK-PURE® 60 (active, modular oil–water separator)
• Maximum condensate flow: 76 l/h
• Condensation loop connections: 3 x G1/2" ext. | 1 x G1" ext. | hose nozzle
• Condensate drain connection: 1 x 23 mm (0.91 in), hose nozzle
• Media: compressor condensate, oily
• Maximum oil concentration at drain: 20 mg/l
• Maximum pressure at condensation inlet: 16 bar
• Operating temperature: +5 to +50 °C
• Ambient humidity: 10 % to 80 % (no condensation)
• Weight: 45 Kg
• Replacement cartridges required: 4 (single cartridge used across multiple models)
• FRC control unit: compressed air pressure 3–15 bar(g); purity 2:4:2; air connector 8 mm; supply 90–264 VAC / 24 VDC; 50–60 Hz; consumption 10 VA; IP54
• Communication interface: Modbus (integrated), IIOT functions for integration and monitoring
• Cartridge change time: < 10 minutes with guided procedure
