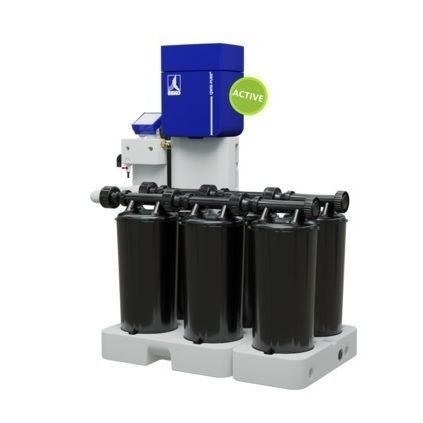

Liquid/liquid separator QWIK-PURE® 90

coalescingfor air compressorswith filter

Product information
QWIK-PURE® adapts to operational needs. Each QWIK-PURE® model can be expanded or scaled down as required, providing planning reliability and simplified procurement thanks to an identical cartridge across models.

Overview
QWIK-PURE® is a modular active oil-water separation system designed for safe, certified and hygienic condensate treatment. The design focuses on compatibility, ergonomic cartridge change, clear status indication and straightforward maintenance while meeting industry hygiene and safety requirements.

Technical data QWIK-PURE® 90 (table)
Operating mode: active
Maximum condensate flow: 114 l/h
Condensate inlet connection: 3 x G1/2" outside | 1 x G1" outside | Hose nozzle
Condensate drain connection: 1 x 23 mm (0.91 in), outside, Hose nozzle
Media: Compressor condensate, oily
Maximum oil concentration at condensate drain: 20 mg/l
Maximum operating pressure at condensate inlet: 16 bar(g)
Minimum / maximum operating temperature (fluids and environment): +5 … +50 °C
Relative humidity of the environment: ≤10 … 80 %, Without condensation
Weight: 60 Kg
Number of replacement cartridges: 6

Technical data of the control unit FRC (table)
Minimum / maximum operating pressure, compressed air: 3 … 15 bar(g)
Cleanliness class, compressed air: 2:4:2
Connection, compressed air: 8 mm (0.31 in), outside, Hose nozzle
Operating voltage: 90 … 264 VAC / 24 VDC
Frequency range: 50 … 60 Hz
Power consumption: 10 VA
Protection class: IP54

Notes
Modular concept: identical cartridges across models allow scalable capacity. Cartridge-change process is guided for hygienic, safe handling. Clear status indicators support maintenance planning and operational reliability.

Characteristics / technical specifications

• Model: QWIK-PURE® 90
• Operating mode: active oil-water separator
• Maximum condensate flow: 114 l/h
• Condensate inlet connections: 3 x G1/2" (outside); 1 x G1" (outside); hose nozzle
• Condensate drain: 1 x 23 mm (0.91 in) outside, hose nozzle
• Media handled: compressor condensate containing oil
• Maximum oil concentration at drain: 20 mg/l
• Maximum condensate inlet pressure: 16 bar(g)
• Operating temperature range: +5 … +50 °C
• Relative humidity: ≤10 … 80 % (without condensation)
• Weight (table): 60 Kg
• Replacement cartridges required per unit: 6
• Control unit FRC — compressed air pressure: 3 … 15 bar(g); cleanliness class: 2:4:2; air connection: 8 mm (outside); supply voltage: 90 … 264 VAC / 24 VDC; frequency: 50–60 Hz; power: 10 VA; protection: IP54
• Functional highlights: active separation system, modular expandability, guided cartridge change for hygienic handling, clear status indication for maintenance planning
