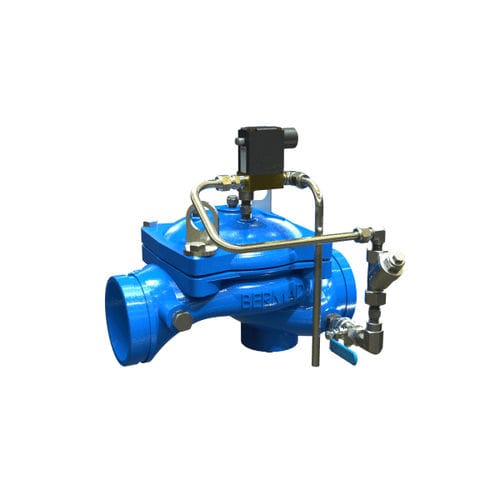

Globe valve 410

hydraulichydraulically-operatedshut-off

Overview
Hydraulically operated solenoid-controlled valve designed to open fully or shut off in response to an electrical signal. Available in Normally Open (NO), Normally Closed (NC) and LATCH configurations. Suitable for tank filling, bypass and filtration control in municipal and building water systems.

Features & Benefits

• Line pressure driven – independent operation
• Solenoid controlled
  • Low power consumption
  • Wide voltage options
  • Available as NO, NC or LATCH
• Flexible design – easy addition of options and accessories
• Advanced globe hydro-efficient design
  • Unobstructed flow path
  • Single moving part
  • Non-turbulent flow
  • High flow capacity
• Fully supported & balanced diaphragm
  • Provides progressive valve closing
  • Prevents diaphragm distortion
• In-line serviceable
  • Easy maintenance
  • Minimal downtime

Typical Applications

• Water reservoirs – block valve for tank filling systems
• Reservoir bypass – direct supply during reservoir maintenance
• Filtration systems – channeling flow during automatic backflushing

Model / Technical specifications

• Model designation: 410 (part of the 400 Series)
• Operation: Hydraulically operated, solenoid actuated (line pressure driven)
• Control types: Normally Open (NO), Normally Closed (NC), LATCH
• Electrical: Low power consumption; supports wide voltage ranges
• Hydraulic design: Advanced globe hydro-efficient design with unobstructed flow path and single moving part for high flow capacity and non-turbulent flow
• Diaphragm: Fully supported and balanced to prevent distortion and provide progressive closing
• Serviceability: In-line serviceable for easy maintenance and minimal downtime
• Typical sectors: Buildings & Construction, Waterworks
• Internal identifier / barcode: 30389
