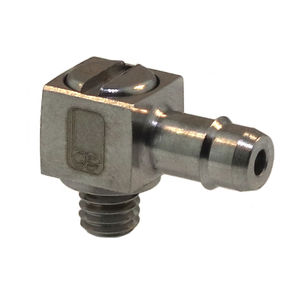

Pneumatic fitting 3/16 - 1/16" | MHL Series
barbedelbowbrass

pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
barbed
Configuration
elbow
Material
brass
Diameter

Max.: 4.5 mm (0.177 in)

Min.: 1.6 mm (0.063 in)

Operating pressure

Max.: 100 psi

Min.: 0 psi

Description

Beswick barb to barb tubing union has an elbow fitting supported by fixed position tubing. It is suitable for joining two tubes or hoses of similar inside diameter. It provides a maximum pressure rating of 100 psig if used with suitably sized polyurethane tubing. With a clamp fastened, the tubing's burst pressure is the limiting factor. The material used is 303 stainless steel, ENP Brass, 316 stainless steel, and brass. The tubing is pushed easily on to the fitting by hand with Beswick's proprietary "line contact" barb with single edge. At the same time, it still provides high holding power. Also a leak tight connection is assured at the tubing interface. It should be noted the recommended tube ID is for polyurethane or vinyl tubing. Customers planning to use a different tubing material need to consult factory.
